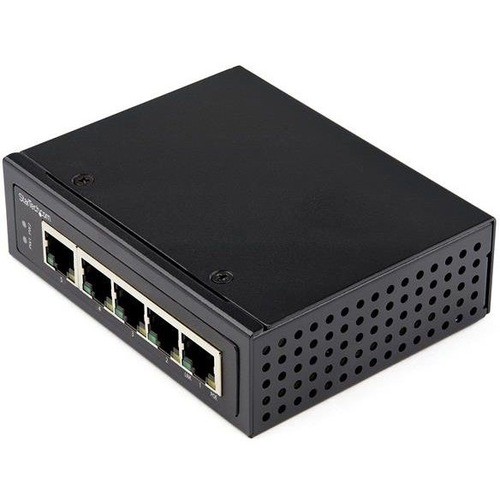

StarTech.com Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30 - 5 Port Gigabit PoE switch 30W PSE power per port to devices w/GbE on Cat5e/6 - Power over Ethernet Network IEEE 802.3af IESC1G50UP
IESC1G50UP | Startech®
Part Number: IESC1G50UP
Condition: New
In Stock: 6
Real time availability
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
StarTech.com Industrial 5 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30 - 5 Port Gigabit PoE switch 30W PSE power per port to devices w/GbE on Cat5e/6 - Power over Ethernet Network IEEE 802.3af IESC1G50UP
5 Pt PoEplus Switch 30W TAA
Manufacturer Part Number: IESC1G50UP
5 Port Gigabit PoE switch provides up to 30W of PSE power per PoE port to cameras & access points with Cat5e/6, Total power:200W - IEEE 802.3af, IEEE 802.3at, 10/100/1000 Mbps, Unmanaged, Alarm Relay, DIN Wall Mount, Redundant Power Input - High Power over Ethernet network, Rugged GbE switch with MTBF 600 000+hrs @50C, Vibration shock & free fall rated, Industrial IP-30, -40C to 75C hardened, 2kV surge protection on ports - Power with 48-56VDC terminal block or standard 48-56VDC TypeN wall adapter.
MANUFACTURER NAME: Startech
MANUFACTURER PART NUMBER: IESC1G50UP
UPC EAN CODE: 065030889629
LANGUAGE: EN
MARKET:US
| General Information: | |
This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs. For Demanding Environments Where No Fiber Connections Are RequiredUsing Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time. Truly Industrial for Devices That Must Function Under Harsh ConditionsIndustrial features include:
This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability. A Flexible & Easy-to-Deploy SolutionIncludes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution. | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IESC1G50UP |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Ethernet Switch |
| Product Type | Ethernet Switch |
| Product UPC | 065030889629 |
| Interfaces/Ports: | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+
1 x Gigabit Ethernet Network |
| Media & Performance: | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication: | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3
IEEE 802.3at IEEE 802.3x |
| Management & Protocols: | |
| Manageable | No |
| Power Description: | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Power Source | PoE+ |
| Power Consumption | 126 W |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics: | |
| Product Material | Steel |
| Form Factor | Wall Mountable
DIN Rail Mountable |
| Height | 1.3" |
| Width | 3.2" |
| Length | 4.1" |
| Weight (Approximate) | 5.30 oz |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty: | |
| Warranty | 2 Year |
