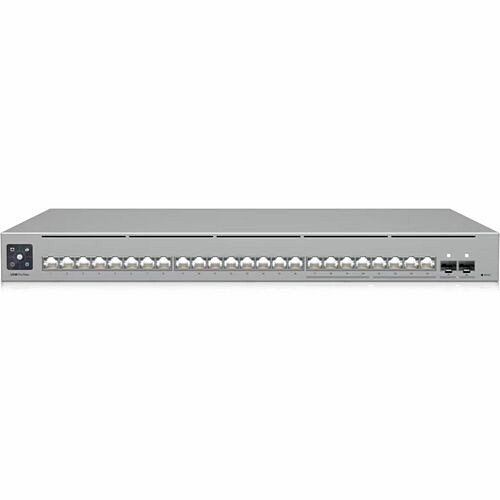

Pro Max 24 USW-Pro-Max-24
USW-Pro-Max-24 | Ubiquiti®
Part Number: USW-Pro-Max-24
Condition: New
In Stock: 2
Real time availability
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Pro Max 24 USW-Pro-Max-24
Pro Max 24
Manufacturer Part Number: USW-Pro-Max-24
A 24-port, Layer 3 Etherlighting switch with 2.5 GbE.
MANUFACTURER NAME: Ubiquiti
MANUFACTURER PART NUMBER: USW-Pro-Max-24
UPC EAN CODE: 810084692622
LANGUAGE: EN
MARKET:US
| General Information: | |
A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
| |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-Pro-Max-24 |
| Manufacturer Website Address | http://www.ui.com |
| Brand Name | Ubiquiti |
| Product Line | Pro Max |
| Product Name | Pro Max Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Product UPC | 810084692622 |
| Technical Information: | |
| Features | Reset Button |
| Interfaces/Ports: | |
| Total Number of Network Ports | 24 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x 2.5 Gigabit Ethernet Network
16 x Gigabit Ethernet Network 2 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance: | |
| Media Type Supported | Optical Fiber
Twisted Pair |
| Ethernet Technology | 2.5 Gigabit Ethernet
Gigabit Ethernet 10 Gigabit Ethernet |
| Network Technology | 2.5GBase-T
10/100/1000Base-T 10GBase-X |
| I/O Expansions: | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication: | |
| Layer Supported | 3 |
| Power Description: | |
| Input Voltage | 120 V AC
230 V AC |
| Power Source | AC/DC |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 50 W |
| Physical Characteristics: | |
| Product Material | Galvanized Cold Rolled Steel (SGCC) |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 12.8" |
| Weight (Approximate) | 9.48 lb |
Questions and Answers
Questions and Answers | Ask CompSource |
Shipping / Returns
Shipping
Ground =
FREE
(EST. Arrival Date between
Wed.Nov.27 - Mon.Dec.2)
Two Day Air = $44.00
(EST. Arrival Date on Wed.Nov.27)
Priority = $102.00
(EST. arrival Date on Tue.Nov.26 in the AM)
U.S Mail Priority (AA,AE,AP only) = $48.67
FedEx International Economy (Canada only) = $104.00
Shipping dates are best estimates based on product location and may vary with holidays.
If product requires trucking, additional fees may apply.
* Some destinations are subject to Applicable State/Duty Taxes
Returns
CompSource realizes that every product may have different return guidelines. Please see the policy below regarding this item.
Please Note: Due to Ubiquiti's Policy this product is not available for return or exchange and must be handled with Ubiquiti Direct.
For support on this product, please contact Ubiquiti. http://www.ubnt.com
Ubiquiti Company's Information
Click Ubiquiti for all products
Local #: (408) 942-3085
Tech Support #: (949) 682-0251
Site: http://www.ubnt.com
Accessories
Product Reviews
Overall Rating | Write a Review
|
|
Best Sellers
More Best Sellers
About Ubiquiti
Ubiquiti Networks designs and manufactures disruptive technology platforms for emerging markets that drive profitable business models and enable ubiquitous connectivity.
Ubiquiti Networks, Inc. develops performance networking technology for service providers and enterprises. The Company offers a portfolio of networking products and solutions. Its service provider product platforms provide carrier-class network infrastructure for fixed wireless broadband, wireless backhaul systems and routing. Its enterprise product platforms provide wireless local area network (WLAN) infrastructure, video surveillance products, switching and routing solutions, and machine-to-machine communication components. Its products and solutions include radios, antennas, software, communications protocols and management tools that are designed to deliver carrier and enterprise class wireless broadband access and other services primarily in the unlicensed radio frequency spectrum. Its service provider and carrier solutions include Base Station/Backhaul/Customer Premise Equipment (CPE)/Bridge-airMAX, Network Routing Platform-EdgeMAX and Point-to-point Wireless Backhaul-airFiber.
Here are some of the most popular APC categories offered from CompSource;
Need help deciding what's best for you? You Chat with us or give our professionals a quick phone call (800)-413-7361, we can assist with the best solution for your needs and budget!
Learn more about Switches & Bridges
Network Switch Buying Guide
Connect Multiple Devices to a Network and Route Data to Designated Devices
What is a network switch and what does it do?
A network switch connects devices to a local area network (LAN) and allows the devices to communicate over the network. For example, you can connect computers, printers and servers to the same network switch and route data between them. Unlike an Ethernet hub, which transmits the same data through every output, a network switch sends data only to the devices designated to receive it. This improves the efficiency and potential throughput of the network.
Are there different types of network switches?
There are two main types of network switches, unmanaged and managed. The essential difference is the capability to configure the operation of a managed switch to customize and optimize network traffic for specific applications.
Unmanaged Switches
- Offer plug-and-play functionality
- Switch operation cannot be modified
- CompSource offers desktop and rack-mount unmanaged switches
Managed Switches
- Provide the ability to manage, prioritize and monitor LAN traffic
- Offer one or more ways to modify switch operation
- CompSource offers smart managed switches that feature an RJ45 console port and command line interface (CLI)
Where do you place network switches?
Network switches are usually placed on a desk or table, mounted on a wall, or mounted in a rack. CompSource offers unmanaged desktop switches (with metal or plastic housing) and both unmanaged and managed rack-mount switches with metal housing and a built-in PDU (Gigabit Ethernet Switch PDU Combos).
What is a Gigabit Ethernet Switch PDU Combo?
CompSource offers an exclusive line of unmanaged and managed Gigabit Ethernet switches that have Power over Ethernet (PoE).
Factors to Consider
Does your application require a managed switch?
If your application involves controlling network traffic, you will need the features of a managed switch. The following are some examples of tasks that require a managed switch:
- Controlling access between departments within your LAN
- Running many bandwidth-intensive applications simultaneously
- Giving important data greater priority in your LAN
- Improving the performance of a busy network
- Implementing VoIP, wireless LANs or other advanced services
How many devices do you need to connect to your network?
Make sure you select a switch with enough Gigabit (10/100/1000 Mbps) Ethernet ports for the devices you want to connect to your network. If you think you'll add more devices in the future, choose a switch that will give your network room to grow.
Do you need to connect multiple network switches?
If you plan to connect multiple network switches, look for models with SFP uplink ports (also known as Mini-GBIC ports). SFP uplink ports are connection points for SFP (small form-factor pluggable) modules that allow the switch to uplink to other switches using optical fiber cabling.
Power over Ethernet (PoE) uses existing network cables to power connected devices, such as VoIP phones, wireless access points and surveillance cameras. If you need this functionality, look for a switch with Gigabit Ethernet ports that support PoE. Make sure the power per port (in watts) and the total power budget of the PoE ports meet the needs of your electronic devices.
