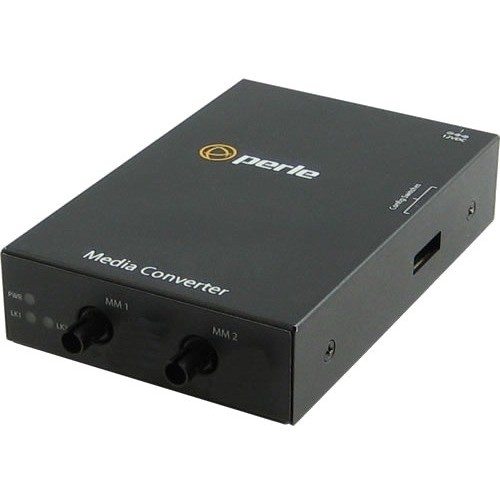

Perle S-100MM-S1ST20D Transceiver/Media Converter - 2 x ST Ports - Duplex, SimplexST Port - Multi-mode, Single-mode - Fast Ethernet - 100Base-BX, 100Base-FX - Rail-mountable, Rack-mountable 05060604
05060604 | Perle Systems®
Part Number: 05060604
Condition: New
In Stock:
Manufacturer Drop Ship
Real time availability
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Perle S-100MM-S1ST20D Transceiver/Media Converter - 2 x ST Ports - Duplex, SimplexST Port - Multi-mode, Single-mode - Fast Ethernet - 100Base-BX, 100Base-FX - Rail-mountable, Rack-mountable 05060604
S-100MM-S1ST20D MEDIA CONVERTER - 100BASET SM BIDI 1550/1310NM 20K
Manufacturer Part Number: 05060604
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Power
- Input Supply Voltage: 6 - 30 vDC, unregulated ( 12 vDC Nominal )
- Current: 0.29 amps
- Power Consumption: 3.5 watts
- Power Connector: 5.5mm x 9.5mm x 2.1mm barrel socket
Indicators:
- Power / TST: This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode.
- Fiber link 1 / Receive activity (LK1): This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
- Fiber link 2 on / Receive activity (LK2): This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received.
- Link Pass Through: Enabled (Default) - When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter. If disabled, the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface.
- Far-End Fault (FEF):
- Enabled ( default ) - The media converter transmits the Far-End Fault Indication over the fiber connection whenever a receive failure is detected. The media converter continuously monitors the fiber connection and clears the Far-End Fault Indication condition when a valid signal is received.
- Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. Link #2's fiber transmitter is taken off the interface.
- Remote Loopback #1:
- The media converter can perform a loopback on the link #1 fiber interface.
- Disabled (Default - Up)
- Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
- Remote Loopback #2:
- The media converter can perform a loopback on the link #1 fiber interface.
- Disabled (Default - Up)
- Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface.
- Fiber Optic Cable:
- Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron
- Single Mode: 9/125 micron (ITu-T 625)
- Bit Error Rate (BER): <10 -12
- Operating Temperature: 0 C to 50 C (32 F to 122 F)
- Storage Temperature: minimum range of -25 C to 70 C (-13 F to 158 F)
- Operating Humidity: 5% to 90% non-condensing
- Storage Humidity: 5% to 95% non-condensing
- Operating Altitude: Up to 3,048 meters (10,000 feet)
- Heat Output
- ( BTU/HR ): 11.9
- MTBF (Hours)**:
- Without power adaptor: 503,679
- With power adaptor: 302,090
- Din Rail Kit: Optional
- Rack Mount Kit: Optional
- Weight: 0.3 kg, 0.66 lbs
- Dimensions: 120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches
- Shipping Weight: 0.55 kg, 1.2 lbs
- Shipping Dimensions: 170 x 280 x 70 mm, 6.7 x 10.2 x 2.8 inches
- Emissions:
- FCC Part 15 Class B*, EN55022 Class B*
- CISPR 22 Class B*
- EN61000-3-2
- Immunity: EN55024
- Electrical Safety:
- UL 60950-1
- EN60950
- CE
- Laser Safety:
- EN 60825-1:2007
- Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
- Environmental: Reach, RoHS and WEEE Compliant
MANUFACTURER NAME: Perle Systems
MANUFACTURER PART NUMBER: 05060604
UPC EAN CODE: 734660606042
LANGUAGE: EN
MARKET:US
| General Information: | |
Perle's feature rich S-100MM Fast Ethernet Fiber to Fiber Media Converters enable transparent fiber extension of 100Base-FX multimode fiber to 100Base-FX multimode or 100Base-LX/EX/ZX/BX single mode fiber. Perle's advanced features make the end to end fiber link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. In addition, a lifetime warranty and free worldwide technical support make Perle's S-100MM Fast Ethernet Fiber to Fiber Media Converters the smart choice for IT professionals. Whether you need to extend multimode to multimode or multimode to single mode, Perle has an extensive range of S-100MM Fast Ethernet Fiber to Fiber Media Converters to meet your fiber conversion requirement. | |
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 05060604 |
| Manufacturer Website Address | http://www.perle.com |
| Brand Name | Perle |
| Product Model | S-100MM-S1ST20D |
| Product Name | S-100MM-S1ST20D Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Product UPC | 734660606042 |
| Interfaces/Ports: | |
| Total Number of Ports | 2 |
| Network (RJ-45) | No |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of ST Ports | 2 |
| ST Port Type | Duplex
Simplex |
| Media & Performance: | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode
Single-mode |
| Fiber Optic Wavelength | 1550 nm
1310 nm |
| Maximum Distance Supported | 12.43 Mile |
| Fiber Optic Cable Standard | 62.5/125 µm
50/125 µm 85/125 µm 100/140 µm 9/125 µm |
| Network & Communication: | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-BX
100Base-FX |
| Power Description: | |
| Power Source | AC Adapter |
| Physical Characteristics: | |
| Form Factor | Rail-mountable
Rack-mountable |
| Height | 1" |
| Width | 3.1" |
| Depth | 4.7" |
| Weight (Approximate) | 10.58 oz |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
| Country of Origin | Canada |
| Warranty: | |
| Warranty | Lifetime |
