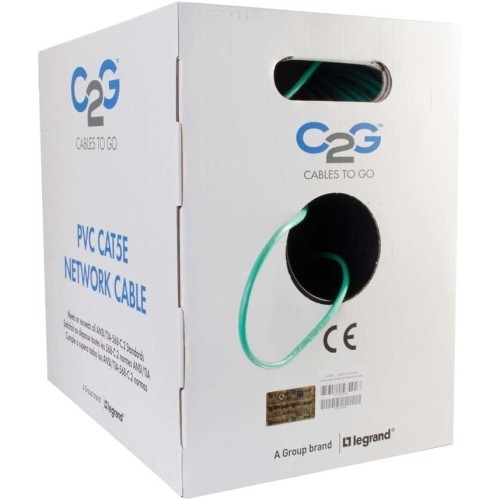

C2G Cat.5e Patch UTP Network Cable - 1000 ft Category 5e Network Cable for Network Device - First End: Bare Wire - Second End: Bare Wire - Patch Cable - 24 AWG - Green 43402
43402 | C2g®
Part Number: 43402
Condition: New
In Stock: 62
Real time availability
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
C2G Cat.5e Patch UTP Network Cable - 1000 ft Category 5e Network Cable for Network Device - First End: Bare Wire - Second End: Bare Wire - Patch Cable - 24 AWG - Green 43402
1000FT CAT5E 350MHZ STRANDED CM Green
Manufacturer Part Number: 43402
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Color : Green
Length : 1000.00 Foot
Jacket Rating : In Wall
UPC : 757120434023
Warranty : Lifetime
Vendor : C2G
Weight : 22.725 LB
Electrical Characteristics
• Voltage rating: 300V
• Spark test: 2.5KV DC
• AC leakage (current through jacket): < 10mA (1.5KV AC)
• Conductor DC resistance: < 14Ω/100m
• Resistance unbalance: < 5%
• Dielectric strength: 1.5KV AC for 2s
• Insulation resistance: > 5000MΩ/KM
• Mutual capacitance: < 5.6nF/100m
• Capacitance unbalance (pair-to-ground): < 330 pF/100m
Physical Characteristics
Conductors
• Material: 24AWG (7/33) stranded, bare copper
• Insulation: Polyolefin (PO)
• Outside diameter: 0.97 ± 0.02mm
Overall cable
• Jacket material: Flame retardant polyvinyl chloride (FRPVC)
• Jacket thickness: 0.50 ± 0.05mm
• Outside diameter: 5.5 ± 0.2mm
• Storage temperature range: -20° to 75°C
• Installation temperature range: 0° to 60°C
• Operating temperature range: -20° to 60°C
• Minimum bend radius: 22mm
• Maximum pulling tension: 110N
Product Uses
Ideal for IEEE802.3u 100Base-T and legacy speeds, CDDI/ATM/Token Ring, IEEE 802.3af (PoE)/IEEE 802.3at (PoE+), voice and multimedia.
MANUFACTURER NAME: C2g
MANUFACTURER PART NUMBER: 43402
UPC EAN CODE: 757120434023
LANGUAGE: EN
MARKET:US
| General Information: | |
This in-wall rated Cat5e cable is perfect for creating custom length network patch cables. The stranded conductor construction makes this cable flexible and easy to work with, while the design of this box allow it to be easily dispensed. This cable is built to ANSI/TIA-568-C.2 standards and tested at frequencies up to 350MHz making it the ideal product for high performance transmissions. The jacket is foot marked allowing for easy determination of the amount of cable remaining. | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 43402 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | C2G |
| Product Name | Cat.5e Patch UTP Network Cable |
| Package Type | Bulk |
| Product Type | Network Cable |
| Product UPC | 757120434023 |
| Technical Information: | |
| Cable Type | Category 5e |
| Cable Characteristic | Patch Cable |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Connector on Second End Details | Bare Wire |
| Device Supported | Network Device |
| American Wire Gauge | 24 AWG |
| Features | Flexible
Flame Retardant Stranded |
| Physical Characteristics: | |
| Color Family | Green |
| Product Color | Green |
| Weight (Approximate) | 22.73 lb |
| Miscellaneous: | |
| Country of Origin | Taiwan |
| Warranty: | |
| Warranty | Lifetime |
