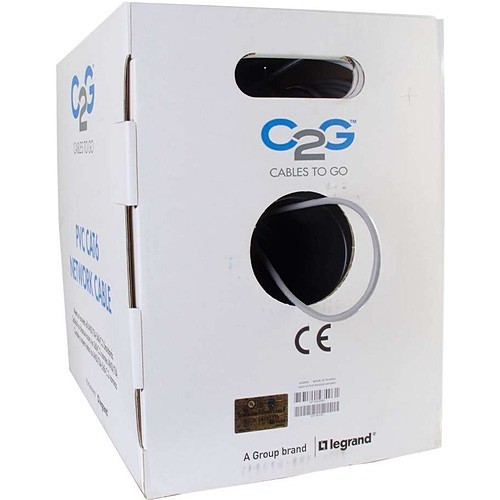

C2G Cat.6 UTP Patch Network Cable With Ethernet - 1000 ft Category 6 Network Cable for Network Device - First End: Bare Wire - Second End: Bare Wire - Patch Cable - 24 AWG - Gray 43406
43406 | C2g®
Part Number: 43406
Condition: New
In Stock: 12
Real time availability
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
C2G Cat.6 UTP Patch Network Cable With Ethernet - 1000 ft Category 6 Network Cable for Network Device - First End: Bare Wire - Second End: Bare Wire - Patch Cable - 24 AWG - Gray 43406
1000FT CAT6 BULK UNSHIELDED (UTP) ETHERNET NETWORK CABLE WITH STRANDED CONDUCTOR
Manufacturer Part Number: 43406
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Color : Grey
Length : 1000.00 Foot
Jacket Rating : In Wall
UPC : 757120434061
Warranty : Lifetime
Vendor : C2G
Weight : 23.682 LB
Electrical Characteristics
• Voltage rating: 300V
• Spark test: 2.5KV DC
• AC leakage (current through jacket): < 10mA (1.5KV AC)
• Conductor DC resistance: < 14Ω/100m
• Resistance unbalance: < 5%
• Dielectric strength: 1.5KV AC for 2s
• Insulation resistance: > 5000MΩ/KM
• Mutual capacitance: < 5.6nF/100m
• Capacitance unbalance (pair-to-ground): < 160 pF/100m
Physical Characteristics
Conductors
• Material: 24AWG (7/33) stranded, bare copper
• Insulation: Polyolefin (PO)
• Outside diameter: 1.00 ± 0.03mm
Overall cable
• Jacket material: Flame retardant polyvinyl chloride (FRPVC)
• Jacket thickness: 0.50 ± 0.05mm
• Outside diameter: 5.4 ± 0.2mm
• Storage temperature range: -20° to 75°C
• Installation temperature range: 0° to 60°C
• Operating temperature range: -20° to 60°C
• Minimum bend radius: 21.6mm
• Maximum pulling tension: 110N
MANUFACTURER NAME: C2g
MANUFACTURER PART NUMBER: 43406
UPC EAN CODE: 757120434061
LANGUAGE: EN
MARKET:US
| General Information: | |
This in-wall rated Cat6 cable is perfect for creating custom length network patch cables. The stranded conductor construction makes this cable flexible and easy to work with, while the design of this box allow it to be easily dispensed. This cable is built to ANSI/TIA-568-C.2 standards and tested at frequencies up to 400MHz making it the ideal product for high performance transmissions. The jacket is foot marked allowing for easy determination of the amount of cable remaining. | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 43406 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | C2G |
| Product Name | Cat.6 UTP Patch Network Cable With Ethernet |
| Package Type | Bulk |
| Product Type | Network Cable |
| Product UPC | 757120434061 |
| Technical Information: | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Connector on Second End Details | Bare Wire |
| Shielding | No |
| Device Supported | Network Device |
| American Wire Gauge | 24 AWG |
| Features | Stranded
Flexible |
| Physical Characteristics: | |
| Color Family | Gray |
| Product Color | Gray |
| Weight (Approximate) | 23.60 lb |
| Miscellaneous: | |
| Country of Origin | Taiwan |
