Apc Schneider
Apc Schneider AP8970 PDUs Switched Rack Pdu 818262198300
Apc Schneider AP8970 SpecsSpecials Apc Schneider AP8970 PDUs

Part Number: AP8970
Condition: New
In Stock: Manufacturer Drop Ship


Regular:$2,290.00
Save:$751.02 (33%)

Your Price:
$1,538.98

As low as $141/month
Buy Now, Pay Later




Square Trade
  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications

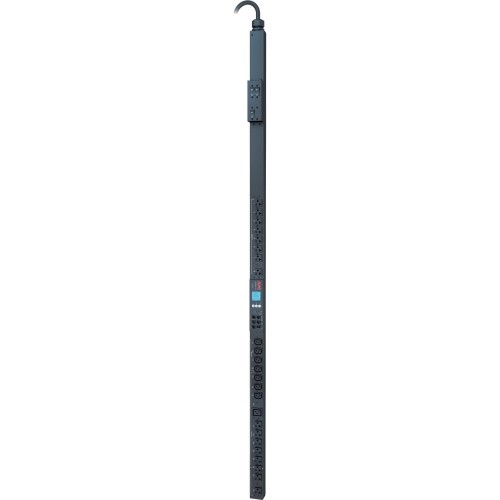

APC Switched Rack PDU - 7 x IEC 60320 C13, 1 x IEC 60320 C19, 16 x NEMA 5-20R - 5.76 kVA - 0U - Toolless-mount, Horizontal Rackmount, Vertical Rackmount AP8970

Rack PDU 2G, Switched, ZeroU, 30A, 120/2

Manufacturer Part Number: AP8970

Rack PDU 2G, Switched, ZeroU, 30A, 120/208V, (16) 5-20R (7) C13 (1) C19



CPN:Rack PDU 2G, Switched, ZeroU, 30A, 120/2
MANUFACTURER NAME: Apc Schneider
MANUFACTURER PART NUMBER: AP8970
UPC EAN CODE: 818262198300
LANGUAGE: EN
MARKET:US

General Information:

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

ManufacturerSchneider Electric SA
Manufacturer Part NumberAP8970
Manufacturer Website Addresshttp://www.schneider-electric.com
Brand NameAPC by Schneider Electric
Product NameSwitched Rack PDU
Product TypePDU
  Product UPC818262198300
Technical Information:
PDU TypeSwitched
Plug/Connector TypeNEMA L14-30P
Receptacle TypeIEC 60320 C13
IEC 60320 C19
NEMA 5-20R
Receptacle Detail7 x IEC 60320 C13
1 x IEC 60320 C19
16 x NEMA 5-20R
Protection TypeOverload Protection
Power Description:
Input Voltage120 V AC
230 V AC
Input Voltage Range120 V AC - 230 V AC
Output Voltage120 V AC
208 V AC
Power Rating (VA)5760 VA
Input Current30 A
Management:
Management
  • Web
  • SNMP
  • Telnet
Physical Characteristics:
Product ColorBlack
Mounting OrientationHorizontal/Vertical
Mount TypeRack-mountable
Form FactorTower
Rack Height0U
Cord Length10 ft
Height72"
Width2.2"
Depth1.8"
Weight (Approximate)17.91 lb
Miscellaneous:
What's in the box
  • Switched Rack PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
  • Environmentally FriendlyYes
    Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Restriction of Hazardous Substances (RoHS)
    Warranty:
    Warranty2 Year

    Date Inserted: Thursday September 18, 2014

    This product was last updated on Saturday November 9, 2024

    All products are brand new and factory sealed unless otherwise stated.
     *** Disclaimer- Information is supplied by the Manufacturer. The image, including color, may differ from actual product appearance. CompSource, Inc. is not responsible for data. ***
