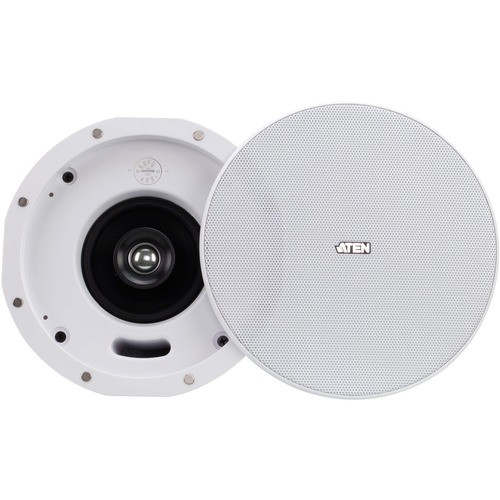

ATEN AS104 2-way Ceiling Mountable Speaker - 30 W RMS - White - 60 W (PMPO) - 4" Paper Cone Woofer - 0.79" Polyetherimide (PEI) Tweeter - 100 Hz to 20 kHz - 8 Ohm
AS104 | Aten®
New Listing!
Part Number: AS104
Condition: New
In Stock:
Out of stock
Real time availability
Notify Me
Product Specifications
ATEN AS104 2-way Ceiling Mountable Speaker - 30 W RMS - White - 60 W (PMPO) - 4" Paper Cone Woofer - 0.79" Polyetherimide (PEI) Tweeter - 100 Hz to 20 kHz - 8 Ohm
4-INCH COAXIAL CEILING LOUDSPEAKERS (ONE PAIR)
Manufacturer Part Number: AS104
MANUFACTURER NAME: Aten
MANUFACTURER PART NUMBER: AS104
UPC EAN CODE: 672792013508
LANGUAGE: EN
MARKET:US
General Information: | |
The AS104 comes in a pair of 4" coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 4" woofer, 20 mm dome tweeter, and 30 W RMS, 60 W peak (8Ω) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 100 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed. The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design. | |
Manufacturer | ATEN Technology, Inc |
Manufacturer Part Number | AS104 |
Manufacturer Website Address | http://www.aten.com/us/en/ |
Brand Name | ATEN |
Product Model | AS104 |
Product Name | 4" Coaxial Ceiling Loudspeaker |
Packaged Quantity | 2 |
Product Type | Speaker |
Product UPC | 672792013508 |
Technical Information: | |
Crossover Type | 2-way |
RMS Output Power | 30 W |
PMPO Output Power | 60 W |
Woofer Driver Size | 4" |
Woofer Driver Material | Paper Cone |
Tweeter Driver Size | 0.79" |
Tweeter Driver Material | Polyetherimide (PEI) |
Minimum Frequency Response | 100 Hz |
Maximum Frequency Response | 20 kHz |
Sensitivity | 86 dB |
Impedance | 8 Ohm |
Physical Characteristics: | |
Color Family | White |
Product Color | White |
Form Factor | Ceiling Mountable |
Height | 5.1" |
Width | 8.6" |
Length | 8.6" |
Cutout Diameter | 7.17" |
Weight (Approximate) | 4.85 lb |
Miscellaneous: | |
What's in the box |
|
Application/Usage | Auditorium
House of Worship Sports Field Commercial |
Environmentally Friendly | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS) |
Warranty: | |
Warranty | 3 Year |
