Gigabyte

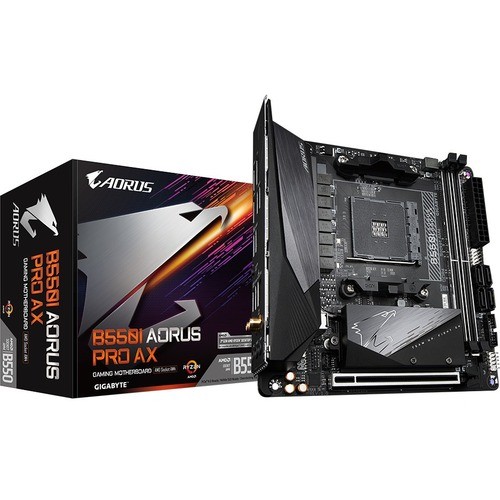

Gigabyte B550I AORUS PRO AX Motherboards Aorus Ultra Durable B550i Aorus Pro Ax Desktop Motherboard - Amd Chipset - Socket Am4 - 64 Gb Ddr4 S B550iaorusproax 889523022986

Part Number: B550I AORUS PRO AX
Condition: New
In Stock: 2
Real time availability


Regular:$209.99
Save:$2.89

Your Price:
$207.10

As low as $19/month
Buy Now, Pay Later




Square Trade
  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications



Aorus Ultra Durable B550I AORUS PRO AX Desktop Motherboard - AMD Chipset - Socket AM4 - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Wireless LAN - IEEE 802.11 a/b/g/n/ac/ax - 6 x USB 3.1 Port - HDMI - 1 x RJ-45 - 4 x SATA Interfac

B550I AORUS PRO AX ITX Component - MOTHERBOARD

Manufacturer Part Number: B550I AORUS PRO AX

AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phases Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Baseplate, Dual PCIe 4.0/3.0 M.2 with Thermal Guard, Intel WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash PlusSupports 3rd Gen AMD Ryzen ProcessorsDual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMsDirect 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal BaseplateUltra Durable PCIe 4.0 Ready x16 SlotDual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal GuardOnboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS AntennaAMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNRBlazing Fast 2.5GbE LAN with Bandwidth ManagementUSB 3.2 Gen2 Type-C & DisplayPort + Dual HDMI SupportRGB FUSION 2.0 Supports Addressable LED & RGB LED StripsSmart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOPQ-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics CardPre-installed IO Shield for Easy and Quick Installation



CPN:B550I AORUS PRO AX ITX Component - MOTHERBOARD
MANUFACTURER NAME: Gigabyte
MANUFACTURER PART NUMBER: B550I AORUS PRO AX
UPC EAN CODE: 889523022986
LANGUAGE: EN
MARKET:US

General Information:

AMD B550 Mini-ITX AORUS Motherboard with Direct 8 Phases Digital VRM, Advanced Thermal Design with Extended VRM Heatsink, Thermal Baseplate, Dual PCIe 4.0/3.0 M.2 with Thermal Guard, Intel® WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus

  • Supports 3rd Gen AMD Ryzen™ Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
  • Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • USB 3.2 Gen2 Type-C™ & DisplayPort + Dual HDMI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation

Best Choice for Small but Powerful PC

B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.

ULTIMATE POWER DESIGN

To fully support the latest 3rd Gen AMD Ryzen™ processors, B550 motherboards equip with the ultimate power solution which is true direct, digital and multiple phases. After countless experiments and testing, GIGABYTE presents the unbeatable B550 motherboards for enthusiast. No Compromise and never stop to achieve higher.

UNPARALLELED PERFORMANCE

GIGABYTE realize that customer won't stop chasing a better computing performance. We take care of it and implement on products. Protective and optimized memory trace enhance the performance. Faster read and write are needed to save time and improve efficiency. We offer plenty of M.2 storage with thermal guards to ensure unthrottled read and write. In advance, adopting PCIe 4.0 ready components get the B550 motherboards easier to upgrade.

ADVANCED THERMAL SOLUTION

Unthrottled performance is guaranteed by the advanced thermal solution which including Extended VRM Heatsink, Heatpipe, Thermal Guards, and Baseplate. B550 motherboards are cool on MOSFETs and M.2 SSDs even on full loading. It provides lower temperatures for enthusiasts and professional gamers.

NEXT GENERATION CONNECTIVITY

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B550 motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.

HI-FI AUDIO SYSTEM

For enthusiasts, sound quality is just as essential to the gaming experience. B550 motherboards are equipped with high quality audio components such as Nichicon Fine Gold capacitors to provide a superb audio experience. The exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

ManufacturerGIGABYTE Technology, Inc
Manufacturer Part NumberB550IAORUSPROAX
Manufacturer Website Addresshttp://www.gigabyte.us
Brand NameAorus
Product LineUltra Durable
Product ModelB550I AORUS PRO AX
Product NameUltra Durable B550I AORUS PRO AX (rev. 1.0) Desktop Motherboard
Product TypeDesktop Motherboard
  Product UPC889523022986
Processor & Chipset:
Chipset ManufacturerAMD
Chipset ModelB550
Total Processor Supported1
Processor SocketSocket AM4
Processor SupportedRyzen 3
Ryzen 5
Ryzen 7
Ryzen 9
Ryzen 3 PRO
Ryzen 5 Pro
Ryzen 7 PRO
Ryzen 9 PRO
Memory:
Number of Memory Slots2
Memory Form FactorDIMM
UDIMM
Maximum Memory Supported64 GB
Memory Speed Supported5300 MHz
5200 MHz
5000 MHz
4866 MHz
4600 MHz
4400 MHz
4000 MHz
3600 MHz
3333 MHz
3200 MHz
2933 MHz
2667 MHz
2400 MHz
2133 MHz
Memory TechnologyDDR4 SDRAM
I/O Controller:
Controller TypeSerial ATA/600
RAID SupportedYes
RAID Levels0
1
10
Video:
Onboard VideoCPU Dependent Video
Audio:
Audio Channels7.1
Network & Communication:
BluetoothYes
2.5Gigabit EthernetYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
I/O Expansions:
Total Number of Expansion Slots1.0
Total Number of PCI Express Slots1
Number of PCI Express x16 Slots1
Interfaces/Ports:
Total Number of USB Ports6
Number of USB 3.2 Ports6
HDMIYes
DisplayPortYes
Number of Network (RJ-45) Ports1
Onboard Interfaces:
Number of SATA Interfaces4
Number of M.2 Interfaces2
Total Number of Onboard USB Ports4
Number of Onboard USB 2.0 Ports2
Number of Onboard USB 3.2 Ports2
Physical Characteristics:
Form FactorMini ITX
Width6.7"
Depth6.7"
Miscellaneous:
What's in the box
  • Ultra Durable B550I AORUS PRO AX (rev. 1.0) Desktop Motherboard
  • Norton Internet Security (OEM version)
  • XSplit Gamecaster + Broadcaster (12 months license)
  • Realtek 8125 Gaming LAN Bandwidth Control Utility
Country of OriginChina
Warranty:
Warranty3 Year
