Harman Pro

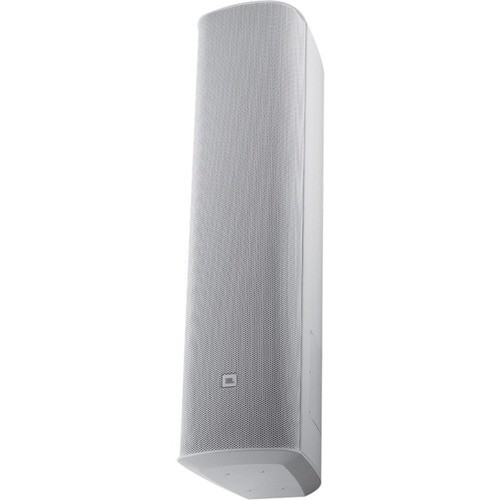

Harman Pro CBT 1000-WH Speakers Jbl Professional Line Array Cbt 1000 2-way Indoor/outdoor Wall Mountable Speaker - White - 45 Hz To  Cbt1000wh 691991005695

Part Number: CBT 1000-WH
Condition: New
In Stock: Out of stock
Real time availability

Notify Me


Regular:$3,290.62
Save:$661.62 (20%)

Your Price:
$2,629.00

As low as $241/month
Buy Now, Pay Later



  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications



JBL Professional Line Array CBT 1000 2-way Indoor/Outdoor Wall Mountable Speaker - White - 45 Hz to 20 kHz - 4 Ohm CBT 1000-WH

JBL H O 2 Way Line Array

Manufacturer Part Number: CBT 1000-WH

JBL High-Output Two-Way Line Array Column with Highly Adjustable Vertical Coverage and Tapered Horizontal Waveguide. Same as CBT1000, in white.



CPN:JBL H O 2 Way Line Array
MANUFACTURER NAME: Harman Pro
MANUFACTURER PART NUMBER: CBT 1000-WH
UPC EAN CODE: 691991005695
LANGUAGE: EN
MARKET:US

General Information:

The CBT 1000 represents the next-generation in pattern control, expanding upon JBL's highly successful CBT Constant Beamwidth Technology™ products. Utilizing patented complex analog beam-forming, the CBT 1000 provides superior and consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

The CBT 1000 combines Constant Beamwidth Technology with adjustable vertical coverage and a tapered horizontal waveguide to increase the versatility of aiming the coverage of the loudspeaker to more accurately map to the room geometry in a wide variety of listening spaces. The asymmetrical coverage settings produce a higher concentration of sound with a tighter pattern from the upper half of the array, and a lower concentration of sound with a broader vertical pattern from the lower half of the array. This sends more sound toward the far area of the room than to the near area of the room, resulting in more even front-toback SPL levels than would be the case from a traditional speaker or column that projects symmetrically in the vertical plane. Additionally, the vertical coverage pattern is individually installer adjustable though a range of four "Pattern Up" coverage angles and four "Pattern Down" coverage angles for a total of sixteen different coverage combinations, all without the use of any external DSP processing. The new patent-pending Tapered Horizontal Waveguide design provides a continuously varying horizontal dispersion by providing a very wide angle of dispersion for the short-throw distances while also providing a narrower horizontal angle of dispersion for the long-throw distances, providing superior coverage in both the front and rear corners of a room. The consistent pattern control allows the CBT 1000 to work well in difficult acoustic environments.

The two-way coaxial design provides a wide 45 Hz - 20 kHz bandwidth. The low-diffraction baffle eliminates frequency response irregularities that could otherwise occur due to baffle discontinuities. The thick, heavy-duty aluminum grille allows for rust-free installation outdoors. At 102 cm (40.2 in) tall and only 25 cm (9.9 in) wide, the design fits well with virtually any architectural décor.

ManufacturerHarman International Industries, Inc
Manufacturer Part NumberCBT 1000-WH
Manufacturer Website Addresshttp://www.harman.com
Brand NameJBL Professional
Product LineLine Array
Product SeriesCBT
Product ModelCBT 1000
Product NameLine Array CBT 1000 Speaker
Product TypeSpeaker
  Product UPC691991005695
Technical Information:
Crossover Type2-way
Woofer Driver Size6.50"
Woofer Driver MaterialNeodymium
Tweeter Driver Size1"
Tweeter Driver MaterialSoft Dome
Minimum Frequency Response45 Hz
Maximum Frequency Response20 kHz
Sensitivity137 dB
Impedance4 Ohm
Physical Characteristics:
Product ColorWhite
Form FactorWall Mountable
Speaker InstallationIndoor/Outdoor
Woofer Diameter6.50"
Height40.2"
Width9.9"
Depth13.60"
Weight (Approximate)54 lb
Miscellaneous:
What's in the box
  • Line Array CBT 1000 Speaker
  • 2 x Piece Swivel (Pan)/Tilt Wall Bracket
Application/UsageIndoor/Outdoor
Auditorium
House of Worship
Lecture Hall
Education
Multipurpose
Sports Bar
Racetrack
Transit Center
Amusement Park
Cinema
Country of OriginChina

Date Inserted: Friday October 4, 2019

This product was last updated on Sunday November 3, 2024

All products are brand new and factory sealed unless otherwise stated.
 *** Disclaimer- Information is supplied by the Manufacturer. The image, including color, may differ from actual product appearance. CompSource, Inc. is not responsible for data. ***
