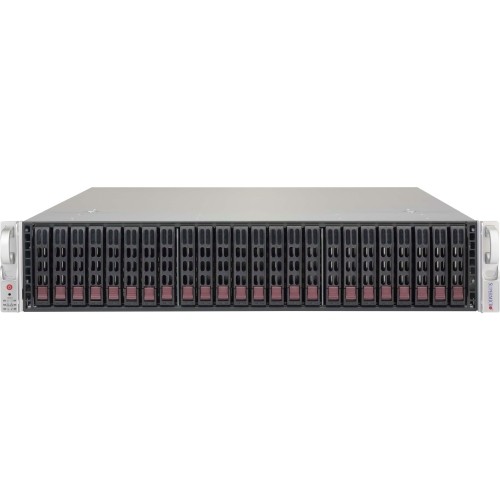

Supermicro SuperChassis 216BE1C-R741JBOD Drive Enclosure - 12Gb/s SAS Host Interface - 2U Rack-mountable - Black - 24 x Total Bay - 24 x 2.5" Bay CSE-216BE1C-R741JBOD
CSE-216BE1C-R741JBOD | Supermicro®
Part Number: CSE-216BE1C-R741JBOD
Condition: New
In Stock:
Manufacturer Drop Ship
Real time availability
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Supermicro SuperChassis 216BE1C-R741JBOD Drive Enclosure - 12Gb/s SAS Host Interface - 2U Rack-mountable - Black - 24 x Total Bay - 24 x 2.5" Bay CSE-216BE1C-R741JBOD
SC216B 2U RackMount 24BAY 740W RPS RackMount - JBOD W/ SINGLE EXPANDER
Manufacturer Part Number: CSE-216BE1C-R741JBOD
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Product SKUs
CSE-216BE1C-R741JBOD: SuperChassis 216BE1C-R741JBOD (Black)
Form Factor: 2U chassis
Processor Support: N/A
Dimensions:
- Height: 3.5" (89mm)
- Width: 17.2" (437mm)
- Depth: 24.8" (630mm)
Gross Weight: 60 lb (27.22 kg)
Available Colors: Black
Drive Bays: Up to 24 x 2.5" hot-swap HDD bay for JBOD solution
Backplane: BPN-SAS3-216EL1 (SAS3 12Gb/s single expander backplane, with LSI SAS3 expander, support 24x 2.5" SATA3/SAS2/SAS3 drives, with 4x mini-SAS3 HD connectors)
Front Panel
Buttons:
- Power On/Off button
- System Reset Button
- Unit Identification (UID) button
System Cooling: 3 x 80x38mm hot-swap cooling fan
Operating Environment (System)
- Operating Temperature Range: 5°C ~ 35°C (41°F ~ 95°F)
- Non-Operating Temperature Range: -40 - 60°C (-40° - 140°F)
- Operating Relative Humidity Range: 8% ~ 90% (non-condensing)
- Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)Power Supply with Power Distributor
- 740W (1+1) Redundant high-efficiency power supply with PMBus
- AC Input: 100-240 V, 50-60 Hz, 9-3.5 Amp
- 4 Amp @ +5V standby
- 61.7 Amp @ +12V
Regulatory (Power Supply)
Power Supply Safety / EMC:
- USA - UL listed, FCC
- Canada - CUL listed
- Germany - TUV Certified
- Europe/CE Mark
- EN 60950/IEC 60950-Compliant
MANUFACTURER NAME: Supermicro
MANUFACTURER PART NUMBER: CSE-216BE1C-R741JBOD
UPC EAN CODE: 098379098469
LANGUAGE: EN
MARKET:US
| General Information: | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CSE-216BE1C-R741JBOD |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperChassis |
| Product Model | 216BE1C-R741JBOD |
| Product Name | SuperChassis 216BE1C-R741JBOD |
| Packaged Quantity | 1 |
| Product Type | Drive Enclosure |
| Product UPC | 098379098469 |
| Controllers: | |
| Non-RAID Mode | JBOD |
| I/O Expansions: | |
| Number of Total Expansion Bays | 24 |
| Number of 2.5" Bays | 24 |
| Interfaces/Ports: | |
| Host Interface | 12Gb/s SAS |
| Physical Characteristics: | |
| Product Color | Black |
| Cooling Fan | Yes |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.5" |
| Width | 17.2" |
| Depth | 24.8" |
| Warranty: | |
| Warranty | 1 Year |
