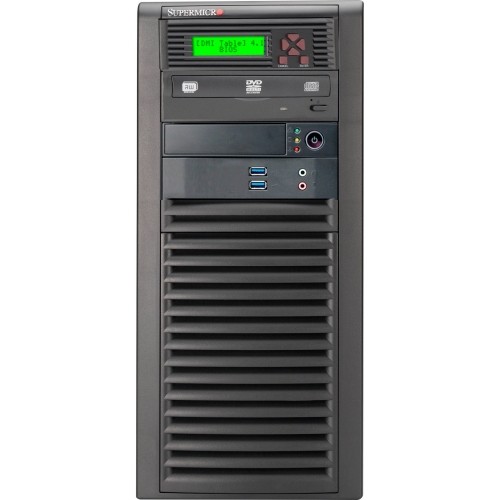

Supermicro SuperChassis 732D3-903B (Black) - Mid-tower - Black - 2 x 4.72" x Fan(s) Installed - 1 x 900 W - Power Supply Installed - Micro ATX, ATX, EATX Motherboard Supported - 2 x External 5.25" Bay - 4 x Internal 3.5" Bay - 7x Slot(s) - 2 x USB(s) CSE-732D3-903B
CSE-732D3-903B | Supermicro®
Part Number: CSE-732D3-903B
Condition: New
In Stock:
Out of stock
Real time availability
Notify Me
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Supermicro SuperChassis 732D3-903B (Black) - Mid-tower - Black - 2 x 4.72" x Fan(s) Installed - 1 x 900 W - Power Supply Installed - Micro ATX, ATX, EATX Motherboard Supported - 2 x External 5.25" Bay - 4 x Internal 3.5" Bay - 7x Slot(s) - 2 x USB(s) CSE-732D3-903B
Supermicro Case CSE-732D3-903B Mid-Tower 4x3.5 Fixed 1x12cm ATX EATX MATX BK
Manufacturer Part Number: CSE-732D3-903B
User Manual PDF
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Product SKUs
CSE-732D3-903B:SuperChassis 732D3-903B (Black)
Form Factor
Mid-Tower chassis for motherboard support size of ATX 12" x 9.6", ATX 12" x 10", E. ATX 12" x 13", Micro ATX 9.6" x 9.6",
Processor Support
Dual, single Intel® / AMD processors
Dimensions
Height:16.7" (424mm)
Width:7.6" (193mm)
Depth:20.68" (525mm)
Packaging:11.97'' (W) x 21.38''(H) 25.28'' (L)
Gross Weight:30 lb (13.61 kg)
Available Colors:Black
Expansion Slots
7 full-height & full-length expansion slot(s)
Drive Bays
Internal:
• 4 x 3.5" fixed drive bay
• SAS or enterprise SATA HDD only recommended
Peripheral Bay:
• 1 card reader module
• 2 standard 5.25" drive bay
Front Panel
Buttons: • Power On/Off button
LEDs: • 1 Network Activity LEDs
• HDD activity LED
• System Information LED
Motherboard(s) for CSE-732D3-903B
X10SRA-F
Server(s) for SC732D3-903B
5038A-I
System Cooling
Fans:
• 1x 12cm front cooling fan
• 1x 12cm front cooling fan
Operating Environment (System)
Operating Temperature Range:5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range:-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range:8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range:5% - 95% (non-condensing)
Power Supply
900W AC multi output power supply
AC Voltage:100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby:3 Amp
+12V1:25 Amp
+12V2:25 Amp
+12V3:25 Amp
+12V4:25 Amp
+5V:25 Amp
+3.3V:25 Amp
-12V:0.5 Amp
MANUFACTURER NAME: Supermicro
MANUFACTURER PART NUMBER: CSE-732D3-903B
UPC EAN CODE: 672042174805
LANGUAGE: EN
MARKET:US
| General Information: | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CSE-732D3-903B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperChassis |
| Product Model | CSE-732D3-903B |
| Product Name | SuperChassis 732D3-903B (Black) |
| Packaged Quantity | 1 |
| Product Type | Server Case |
| Product UPC | 672042174805 |
| Technical Information: | |
| Motherboard Supported | Micro ATX
ATX EATX |
| Number of Fans Installed | 2 |
| Installed Fan Size | 4.72" |
| Bays: | |
| Number of External 5.25" Bays | 2 |
| Number of Internal 3.5" Bays | 4 |
| I/O Expansions: | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports: | |
| Total Number of USB Ports | 2 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Power Description: | |
| Power Supply Installed | Yes |
| Number of Power Supplies Installed | 1 |
| Power Supply Wattage | 900 W |
| Physical Characteristics: | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mid-tower |
| Height | 16.7" |
| Width | 7.6" |
| Depth | 20.7" |
