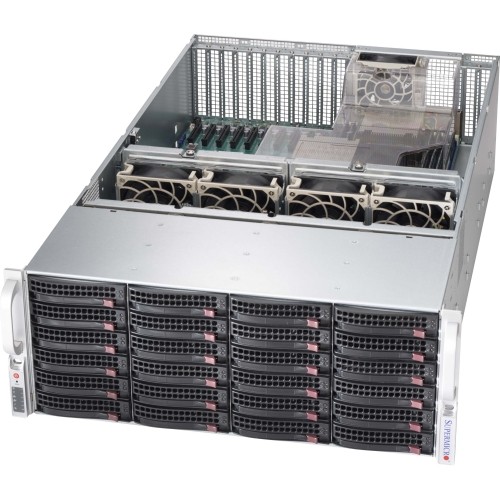

Supermicro SuperChassis 846XA-R1K23B (Black) - Rack-mountable - Black - 4U - 26 x Bay - 5 x 3.15" x Fan(s) Installed - 1 x 1.20 kW - Power Supply Installed - ATX, EATX Motherboard Supported - 24 x External 3.5" Bay - 2 x External 2.5" Bay - 13x Slot( CSE-846XA-R1K23B
CSE-846XA-R1K23B | Supermicro®
Part Number: CSE-846XA-R1K23B
Condition: New
Stock:
Manufacturer Drop Ship
Real time availability
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Supermicro SuperChassis 846XA-R1K23B (Black) - Rack-mountable - Black - 4U - 26 x Bay - 5 x 3.15" x Fan(s) Installed - 1 x 1.20 kW - Power Supply Installed - ATX, EATX Motherboard Supported - 24 x External 3.5" Bay - 2 x External 2.5" Bay - 13x Slot( CSE-846XA-R1K23B
NR BLACK 4U SC846X W/ DESK - REDUNDANT 1200W PWS ROHS/REACH PBF
Manufacturer Part Number: CSE-846XA-R1K23B
User Manual PDF
Note:
- The full product specifications below are from the manufacturer and may contain information related to other package quantities that will not apply to the product that you are reviewing. Please confirm the actual content and/or package quantity from the main product specifications page.
- These specifications may represent the entire product series/model/line to which this product belongs with specific configuration differences between the individual products stated.
- These specifications may have been copied from the same product in other region/country in which case there might be minor differences in region-specific data such as Input Voltage, Terms of Warranty etc.
Product SKUs
CSE-846XA-R1K23B:SuperChassis 846XA-R1K23B (Black)
Form Factor
4U chassis for motherboard support size of 13.68" x 13" E-ATX, 12" x 10" ATX and and 15.2" x 13.2"
Processor Support
Dual and Single Intel® and AMD processors
Dimensions
Height:7" (178mm)
Width:17.2" (437mm)
Depth:26.5" (673mm)
Packaging:34.3'' (W) x 26.5''(H) 13.5'' (L)
Gross Weight:75 lb (34.02 kg)
Available Colors:black
Expansion Slots
13 full-height & full-length expansion slot(s)
Peripheral Drives 2 x 2.5" hot-swap drive bay
Drive Bays
Hot-swap: 24 x 3.5" hot-swap SAS2/SATA3 drive bays with SES2
Front Panel
Buttons:
• Power On/Off button
• System Reset Button
LEDs:
• 2 Network Activity LEDs
• Fan Fail/System Over Heat LED
• HDD activity LED
• Power Status LED
• Power Fail LED
MANUFACTURER NAME: Supermicro
MANUFACTURER PART NUMBER: CSE-846XA-R1K23B
UPC EAN CODE:
LANGUAGE: EN
MARKET:US
| General Information: | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | CSE-846XA-R1K23B |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperChassis |
| Product Model | SC846XA-R1K23B |
| Product Name | SuperChassis 846XA-R1K23B (Black) |
| Packaged Quantity | 1 |
| Product Type | Server Case |
| Technical Information: | |
| Motherboard Supported | ATX
EATX |
| Number of Fans Installed | 5 |
| Installed Fan Size | 3.15" |
| Bays: | |
| Number of External 3.5" Bays | 24 |
| Number of External 2.5" Bays | 2 |
| Number of Total Expansion Bays | 26 |
| I/O Expansions: | |
| Number of Total Expansion Slots | 13 |
| Power Description: | |
| Power Supply Installed | Yes |
| Number of Power Supplies Installed | 1 |
| Power Supply Wattage | 1200 W |
| Physical Characteristics: | |
| Product Color | Black |
| Compatible Rack Unit | 4U |
| Form Factor | Rack-mountable |
| Height | 7" |
| Width | 17.2" |
| Depth | 26.5" |
| Miscellaneous: | |
| What's in the box |
|
