Product Specifications

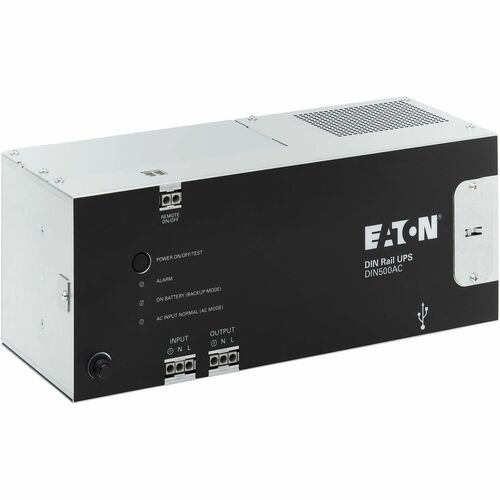

Ac Din Rail Indust Ups 500va DIN500AC
AC DIN RAIL INDUST UPS 500VA
Manufacturer Part Number: DIN500AC
Eaton AC DIN Rail Industrial UPS 500VA 300W 120V Hardwire Input/Output
MANUFACTURER NAME: Eaton
MANUFACTURER PART NUMBER: DIN500AC
UPC EAN CODE: 037332274397
LANGUAGE: EN
MARKET:US
| General Information: | |
Flexible Power Protection for Smart Industrial Applications The DIN500AC standby UPS system with hardwire AC input/output delivers reliable power and battery backup for computing, networking, control and storage equipment in factories, warehouses, edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment. Ideal for Factory Floors and Extreme Temperatures Get full use of the DIN500AC's power capacity because there is no derating based on its operating temperature range of 0°C (32°F) to 50°C (122°F), which expands the number of locations in which it can be used. Built to fit into small spaces, the DIN500AC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability. Reliable Battery Backup Keeps You Operational Through Power Outages Power outages not only drain productivity from the factory floor, but they also damage expensive equipment. The DIN500AC protects productivity by providing enough runtime to maintain operation during a brief power outage and protects equipment by allowing it to complete an operation during an extended outage. It also prevents brownouts, overvoltages, surges and line noise from damaging equipment that could destroy data and contribute to costly downtime. Convenient Automatic Restart The DIN500AC automatically restarts when AC power is restored after an outage, eliminating the need for a costly site visit. Stay in Control of Your Operation LEDs on the front panel confirm normal operation and indicate alarm or fault status. Remote on/off and a battery indicator mode can help you avoid maintenance surprises. The DIN500AC is compatible with PowerAlert® Office software for UPS monitoring and control via USB connection. Easy Preventative Maintenance and Initial Troubleshooting The DIN500AC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads. | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | DIN500AC |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Eaton |
| Product Model | DIN500AC |
| Product Name | DIN500AC 500VA DIN Rail UPS |
| Product Type | Standby UPS |
| Product UPC | 037332274397 |
| Technical Information: | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Receptacle Detail | 1 x Hardwired |
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Edge Computing
Network Storage Device Factory Automation Industry Manufacturing Facility IT System Industrial Machine Control |
| Power Description: | |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Output Voltage | 115 V AC
120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 558 J |
| Output Power Factor | 0.6 |
| Display & Graphics: | |
| Display | LED |
| Controls/Indicators: | |
| Status Indicators | LED Indicators:
|
| Interfaces/Ports: | |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information: | |
| DC System Voltage | 12 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 14.50 Minute |
| Environmental Conditions: | |
| Maximum Operating Elevation | 9843 ft |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Thermal Dissipation | 9.09 W |
| Physical Characteristics: | |
| Height | 15.8" |
| Width | 7.9" |
| Depth | 7.7" |
| Form Factor | DIN Rail |
| Weight (Approximate) | 11.60 lb |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty: | |
| Warranty | 2 Year |
