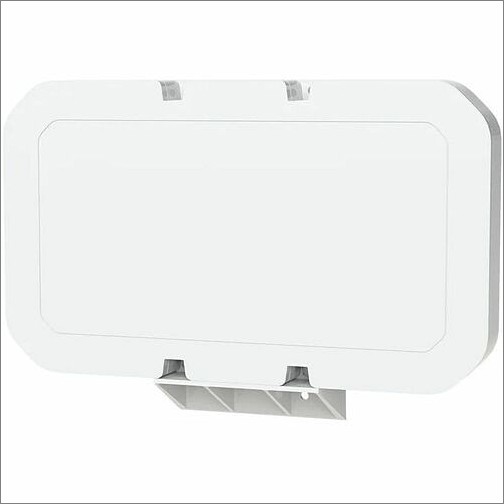

Panorama Antennas DWMM4G-6-60-05NJ Antennas Dwmm4[g]-6-60   4×4 Mimo 4g/5g Antenna Dwmm4g66005nj 5055416071729

Part Number: DWMM4G-6-60-05NJ
Condition: New
In Stock: 3
Real time availability


Regular:$374.85
Save:$111.41 (30%)

Your Price:
$263.44

As low as $24/month
Buy Now, Pay Later



  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications



Panorama Antennas DWMM4[G]-6-60 4×4 MiMo 4G/5G Antenna - 1427 MHz to 6000 MHz, 617 MHz to 960 MHz - 26 dB - 7 dBi - GPS, Cellular Network - White - Wall Mount, Desk Mount, Mast - Omni-directional - N-connector Connector DWMM4G-6-60-05NJ

WALL DESK MOUNT 4X4 4G/5G GNSS Antenna 0.5M N(F)

Manufacturer Part Number: DWMM4G-6-60-05NJ



CPN:WALL DESK MOUNT 4X4 4G/5G GNSS Antenna 0.5M N(F)
MANUFACTURER NAME: Panorama Antennas
MANUFACTURER PART NUMBER: DWMM4G-6-60-05NJ
UPC EAN CODE: 5055416071729
LANGUAGE: EN
MARKET:US

General Information:

The DWMM4[G]-6-60 Antenna Provides a 4×4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz.

Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps.

The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.

The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.

ManufacturerPanorama Antennas Ltd
Manufacturer Part NumberDWMM4G66005NJ
Manufacturer Website Addresshttp://www.panorama-antennas.com
Brand NamePanorama Antennas
Product SeriesDWMM4[G]-6-60
Product NameDWMM4[G]-6-60 | 4×4 MiMo 4G/5G Antenna
Product TypeAntenna
Packaged Quantity1
  Product UPC5055416071729
Technical Information:
DirectivityOmni-directional
Operating Frequency Range1427 MHz to 6000 MHz
617 MHz to 960 MHz
Antenna Gain26 dB
Antenna Gain (Isotropic)7 dBi
Interfaces/Ports:
Connector TypeN-connector
Physical Characteristics:
Color FamilyWhite
Product ColorWhite
Height8.70"
Width1.57"
Form FactorWall Mount
Desk Mount
Mast
Miscellaneous:
Application/UsageGPS
Cellular Network

Date Inserted: Tuesday October 17, 2023

This product was last updated on Wednesday November 27, 2024

All products are brand new and factory sealed unless otherwise stated.
 *** Disclaimer- Information is supplied by the Manufacturer. The image, including color, may differ from actual product appearance. CompSource, Inc. is not responsible for data. ***
