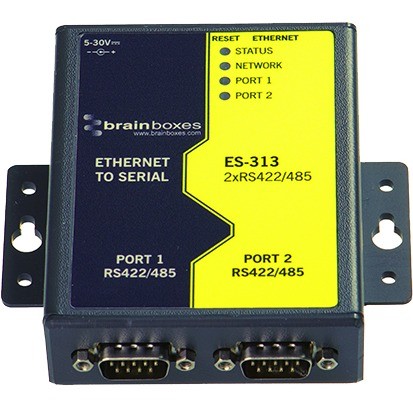

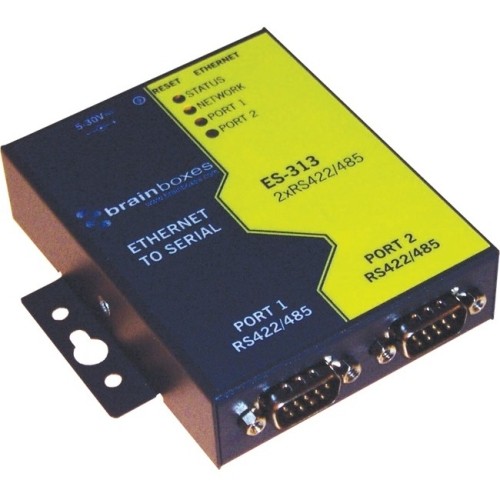

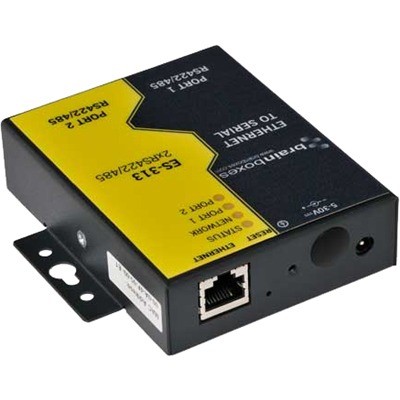

Brainboxes 2 Port RS422/485 Ethernet to Serial Adapter - DIN Rail Mountable - TAA Compliant ES-313
ES-313 | Brainboxes®
Part Number: ES-313
Condition: New
In Stock: 2
Real time availability
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Brainboxes 2 Port RS422/485 Ethernet to Serial Adapter - DIN Rail Mountable - TAA Compliant ES-313
2PORT RS422/485 ETHERNET TO PERP - SERIAL DEVICE SERVER 1 MEGABAUD
Manufacturer Part Number: ES-313
Brainboxes Brochure PDF
User Manual PDF
MANUFACTURER NAME: Brainboxes
MANUFACTURER PART NUMBER: ES-313
UPC EAN CODE: 837324002294
LANGUAGE: EN
MARKET:US
| General Information: | |
Ethernet to Serial device server providing access to two RS422/485 serial ports. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs. | |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | ES-313 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Brand Name | Brainboxes |
| Product Model | ES-313 |
| Product Name | 2 Port RS422/485 Ethernet to Serial Adapter |
| Product Type | Multiport Serial Adapter |
| Product UPC | 837324002294 |
| Interfaces/Ports: | |
| Number of Serial Ports | 2 |
| Physical Characteristics: | |
| Form Factor | DIN Rail Mountable |
| Height | 1.1" |
| Width | 4.1" |
| Thickness | 4.2" |
| Weight (Approximate) | 4.55 oz |
| Miscellaneous: | |
| TAA Compliant | Yes |
| Country of Origin | United Kingdom |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty: | |
| Warranty | Lifetime |
