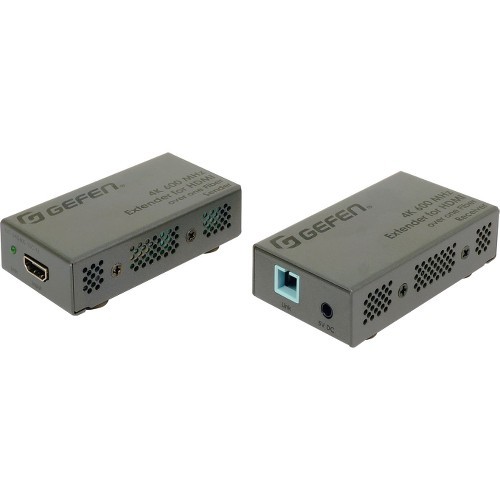

Gefen EXT-UHD600-1SC Video Consoles/Extenders 4k Ultra Hd 600 Mhz Extender For Hdmi Over One Fiber-optic Cable Extuhd6001sc 818241682967

Part Number: EXT-UHD600-1SC
Condition: New
In Stock: Out of stock
Real time availability

Notify Me


Your Price:
$2,189.68

As low as $201/month
Buy Now, Pay Later



  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications



Gefen 4K Ultra HD 600 MHz Extender For HDMI Over One Fiber-Optic Cable - 1 Input Device - 1 Output Device - 660 ft RangeHDMI InHDMI Out - 2 x SC Ports - 4K - 4096 x 2160 - Optical Fiber - Desktop EXT-UHD600-1SC

4K Ultra HD 600 MHz Extender

Manufacturer Part Number: EXT-UHD600-1SC

The Gefen EXT-UHD600-1SC is a compact and high-performance solution for extending uncompressed, full-bandwidth HDMI 2.0 audio/video with HDR, up to 200 meters (660 feet), over a single strand of SC-terminated 50/125 m OM3 or better multi-mode fiber-optic cable. It supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. Full bandwidth support allows the Gefen extender to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4), and 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) along with HDR (High Dynamic Range). HDCP 2.2 and the legacy HDCP 1.4 are both supported. The EXT-UHD600-1SC also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos , Dolby TrueHD, DTS:X, and DTS-HD Master Audio? are passed through to the HDMI outputs. There is full electrical isolation between the Sender and the Receiver, meeting the stringent safety and EMC requirements for critical applications. This extender can be powered from sources and displays featuring powered USB ports, or by using external power supplies. The Sender and Receiver are plug-and-play, and work without any set-up. Compact enclosures are easy to install and can be hidden away. Their sturdy metal enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI). Applications include medical imaging, military and industrial command and control rooms, flight simulators, digital signage, gaming, and wherever 4K full-bandwidth uncompressed video or end-to-end electrical isolation are essential.



CPN:4K Ultra HD 600 MHz Extender
MANUFACTURER NAME: Gefen
MANUFACTURER PART NUMBER: EXT-UHD600-1SC
UPC EAN CODE: 818241682967
LANGUAGE: EN
MARKET:US

General Information:

Gefen EXT-UHD600-1SC

Extend Uncompressed, Full-Bandwidth HDMI 2.0 w/ HDR, up to 200 meters/660 feet

The Gefen EXT-UHD600-1SC is a compact and high-performance solution for extending uncompressed, full-bandwidth HDMI 2.0 audio/video with HDR, up to 200 meters (660 feet), over a single strand of SC-terminated 50/125 µm OM3 or better multi-mode fiber-optic cable. It supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. Full bandwidth support allows the Gefen extender to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4), and 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) along with HDR (High Dynamic Range). HDCP 2.2 and the legacy HDCP 1.4 are both supported. The EXT-UHD600-1SC also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ are passed through to the HDMI outputs. There is full electrical isolation between the Sender and the Receiver, meeting the stringent safety and EMC requirements for critical applications. This extender can be powered from sources and displays featuring powered USB ports, or by using external power supplies. The Sender and Receiver are plug-and-play, and work without any set-up. Compact enclosures are easy to install and can be hidden away. Their sturdy metal enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI). Applications include medical imaging, military and industrial command and control rooms, flight simulators, digital signage, gaming, and wherever 4K full-bandwidth uncompressed video or end-to-end electrical isolation are essential.

ManufacturerGefen, Inc
Manufacturer Part NumberEXT-UHD600-1SC
Manufacturer Website Addresshttp://www.gefen.com
Brand NameGefen
Product ModelEXT-UHD600-1SC
Product Name4K Ultra HD 600 MHz Extender For HDMI Over One Fiber-Optic Cable
Product TypeVideo Extender Transmitter/Receiver
  Product UPC818241682967
Technical Information:
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported1
Maximum Operating Distance660 ft
Video:
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Interfaces/Ports:
HDMI InYes
HDMI OutYes
Number of SC Ports2
Media & Performance:
Media Type SupportedOptical Fiber
Physical Characteristics:
Transmitter Height0.87"
Transmitter Width1.77"
Transmitter Depth3.11"
Form FactorDesktop
Transmitter Weight (Approximate)6.40 oz
Miscellaneous:
What's in the box
  • 1 x Sender Unit (EXT-UHD600-1SC-TX)
  • 1 x Receiver Unit (EXT-UHD600-1SC-RX)
  • 2 x HDMI-To-HDMI Male-To-Male Cable, 3.3 Feet
  • 2 x USB Type-A-To-DC Cable, 2.3 ft
  • 2 x 5V DC Power Supplies & 2 Sets Of Regional AC Plugs (US, UK, EU, & AU) (EXT-PS52AIP-1.3-6-AL)
  • 1 x Quick Start Guide
Warranty:
Warranty2 Year

Date Inserted: Monday November 6, 2017

This product was last updated on Tuesday November 5, 2024
