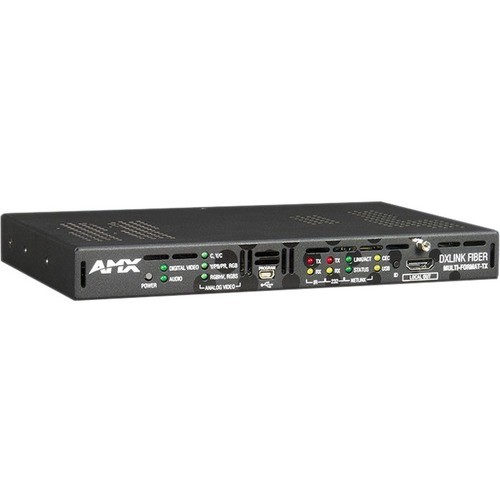

AMX DXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter, Duplex - 2 Input Device - 1 Output Device - 32808.40 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - 480p, 480i, 576i, 1080i - WUXGA - 1920 x 1200 FG1010-360FX
FG1010-360FX | Harman Pro®
Part Number: FG1010-360FX
Condition: New
Stock:
Out of stock
Real time availability
Notify Me
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
AMX DXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter, Duplex - 2 Input Device - 1 Output Device - 32808.40 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - 480p, 480i, 576i, 1080i - WUXGA - 1920 x 1200 FG1010-360FX
DXF-TX-MMD DXLINK FIBER Wireless - MULTI-FORMAT TRANSMITTER
Manufacturer Part Number: FG1010-360FX
DXLink Fiber Multi-Format Transmitter Module (single mode/duplex), HDCP compliant, compatible with Enova DGX DXLink Single Mode Fiber Input Boards
MANUFACTURER NAME: Harman Pro
MANUFACTURER PART NUMBER: FG1010-360FX
UPC EAN CODE: 718878023051
LANGUAGE: EN
MARKET:US
| General Information: | |
The DXLink Multi-Format Fiber Transmitter sends analog and digital audio and video signals including HDMI with HDCP up to 10 Km over single mode fiber. Use the DXLink Fiber Transmitter in conjunction with the Enova DGX 8, 16, 32 or 64 to transmit clear, uncompressed video beyond 6 miles at the fastest data rate in the industry - 10 Gbps. The DXF-TX-SMD also sends and receives control commands from the Enova DGX Digital Media Switcher with integrated NetLinx providing a total control and distribution solution to all end points. Common Applications The ideal entry-point for any source designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber - or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect video sources such as PCs using the HD-15 multi-format input connection or HDMI input and easily include audio on the same fiber cable by using the stereo or digital audio connection. | |
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | FG1010-360FX |
| Manufacturer Website Address | http://www.harman.com |
| Brand Name | AMX |
| Product Line | DXLink |
| Product Model | DXF-TX-SMD |
| Product Name | DXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter, Duplex |
| Product Type | Video Extender Transmitter |
| Product UPC | 718878023051 |
| Technical Information: | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 32808.40 ft |
| Video: | |
| Graphics Modes | WUXGA |
| Supported Video Modes | 480p
480i 576i 1080i |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports: | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| VGA In | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of VGA Inputs | 1 |
| Media & Performance: | |
| Media Type Supported | Optical Fiber
Twisted Pair |
| Physical Characteristics: | |
| Transmitter Height | 1" |
| Transmitter Width | 8.71" |
| Transmitter Depth | 5.15" |
