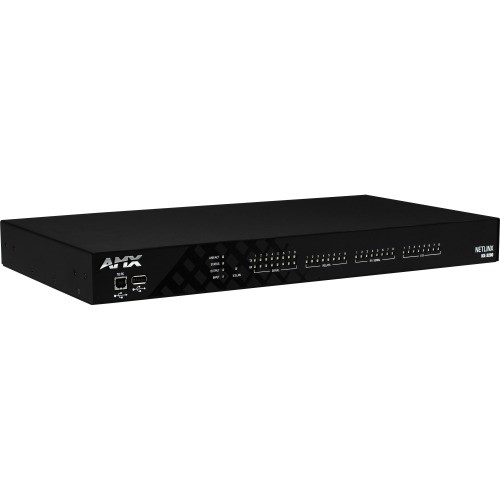

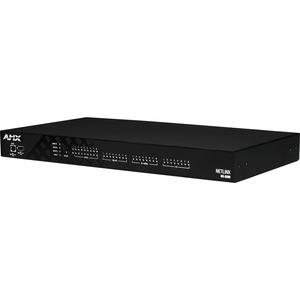

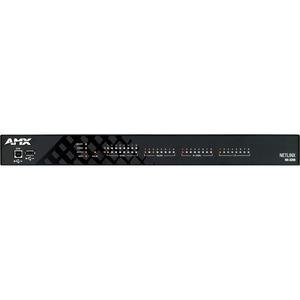

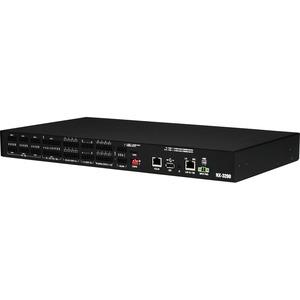

The NX-3200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-3200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-3200 adds more ports to the NX-2200, giving it the ability to integrate a larger number of devices. The NX-3200 controls a wide variety of components including audio/video conferencing, projectors, DVD and Blu-ray players, lights, thermostats and other electronic equipment found in larger spaces. With these technology-driven environments, the NX-3200 also provides solutions for future expansion and enables the addition of more devices and control capabilities.

COMMON APPLICATION

• NX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise.
• The NX-3200 is ideally suited to the requirements of large lecture halls, board rooms, media rooms, and integrated homes with advanced control and automation features.
• With a large local port complement and enhanced security features like Dual NIC, the NX-3200 can handle greater challenges of a large AV system, conferencing, HVAC, lights, security, power management, and many similar specialized applications requiring extensive control with maximum physical ports.

• NX-3200 NetLinx NX Integrated Controller
• 2-pin 3.5 mm mini-Phoenix (female) PWR connector
• 4-pin 3.5 mm mini-Phoenix (female) AxLink connector
• 2 x 10-pin 3.5mm mini-Phoenix female RS232/422/485 connectors
• 6 x 5-pin 3.5mm mini-Phoenix female RS232 connectors
• 2 x 6-pin 3.5 mm mini-Phoenix female I/O connector
• 2 x 8-pin 3.5 mm mini-Phoenix female Relay connector
• 2 x CC-NIRC IR Emitters
• Removable Rack Ears
