Harman Pro

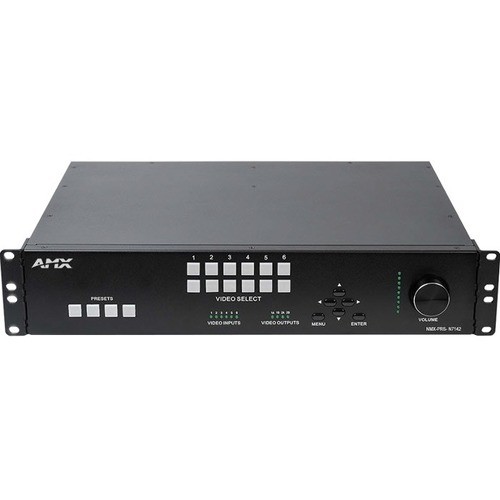

Harman Pro FGN7142-23 VGA Switchboxes Amx N7142 Presentation Switcher With Networked Av - 4k - 6 X 2 - 4 X Hdmi Out Fgn7142-23 Fgn714223

Part Number: FGN7142-23
Condition: New
In Stock: Out of stock
Real time availability

Notify Me


Your Price:
$7,572.00
Free Shipping

As low as $694/month
Buy Now, Pay Later



  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications



AMX N7142 Presentation Switcher With Networked AV - 4K - 6 x 2 - 4 x HDMI Out FGN7142-23

AMX NMX-PRS-N7142-23 NETWORKED - AV PRESENTATION SWITCHER

Manufacturer Part Number: FGN7142-23

Networked AV Presentation Switcher with six local inputs (4 4K60 and 2 VGA), two outputs (HDMI, one scaled, on unscaled, each with mirrored HDMI port). Audio support includes built-in DSP and 60W stereo amplifier capable of operating in 4"/8", 70V, or 100V modes. In addition to audio from the HDMI inputs, the N7142 has six independent balanced stereo inputs and two independent microphone inputs with phantom power. The NMX-PRS-N7142-23 is prepopulated with one N2312 encoder card and one N2322 decoder card.



CPN:AMX NMX-PRS-N7142-23 NETWORKED - AV PRESENTATION SWITCHER
MANUFACTURER NAME: Harman Pro
MANUFACTURER PART NUMBER: FGN7142-23
UPC EAN CODE:
LANGUAGE: EN
MARKET:US

General Information:

The N7142 is the first presentation switcher to incorporate low-latency Networked AV video distribution. It has six local inputs, two outputs, and two available slots for any of our new and existing networked AV cards to support the best codec for the application.

The four 4K60 HDMI inputs and two VGA inputs, can be independently switched between two HDMI outputs (one scaled, one unscaled). Each of the two outputs has a mirrored HDMI port so that the output can be sent to an encoder card, a second display, or other video distribution equipment.

The N7142 also has a 60W stereo amplifier capable of operating in 4Ω/8Ω, 70V, or 100V modes. In addition to audio from the HDMI inputs, the N7142 has six independent balanced stereo inputs and two independent microphone inputs with phantom power for simple microphone overlay.

Two models of the N7142 will be offered. The NMX-PRS-N7142 is the base presentation switcher, with two available Networked AV slots that can be populated with encoder and decoder cards as required by the application. The NMX-PRS-N7142-23 is an identical presentation switcher, prepopulated with one N2312 encoder card and one N2322 decoder card, making it perfect for cost-sensitive 4K video distribution applications.

COMMON APPLICATIONS

While the N7142 is priced right for any design requiring the need of a presentation switcher, the two available Networked AV card slots make it the perfect presentation switcher for active learning environments, or campuses where overflow support is required.

The N7142 Presentation Switcher features an intuitive web interface that makes it easy to configure, control and use. For basic input switching or volume adjustment, educators and presenters can use the straightforward front-panel controls. The N7142 is also AMX NetLinx Native for use in AMX NetLinx control systems. And, with a built-in 6-port managed switch the switcher and the Networked AV cards can be connected to the LAN with only a single network drop.

ManufacturerHarman International Industries, Inc
Manufacturer Part NumberFGN7142-23
Manufacturer Website Addresshttp://www.harman.com
Brand NameAMX
Product ModelNMX-PRS-N7142-23
Product NameN7142 Presentation Switcher With Networked AV
Product TypeVideo Switchbox
Technical Information:
Connectivity TechnologyCable
Number of Input Devices Supported6
Device SupportedDisplay
Number of Displays Supported2
Video:
Graphics Modes4K
Interfaces/Ports:
HDMI InYes
HDMI OutYes
VGA InYes
Connectivity (RJ-45)Yes
Number of Connectivity (RJ-45) Ports6
Number of HDMI Inputs4
Number of HDMI Outputs4
Number of VGA Inputs2
Physical Characteristics:
Form FactorRack-mountable
Height3.5"
Width17.3"
Depth14"
Weight (Approximate)19 lb
Miscellaneous:
Environmentally FriendlyYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)

Date Inserted: Saturday July 13, 2019

This product was last updated on Friday November 29, 2024

All products are brand new and factory sealed unless otherwise stated.
 *** Disclaimer- Information is supplied by the Manufacturer. The image, including color, may differ from actual product appearance. CompSource, Inc. is not responsible for data. ***
