Panorama Antennas

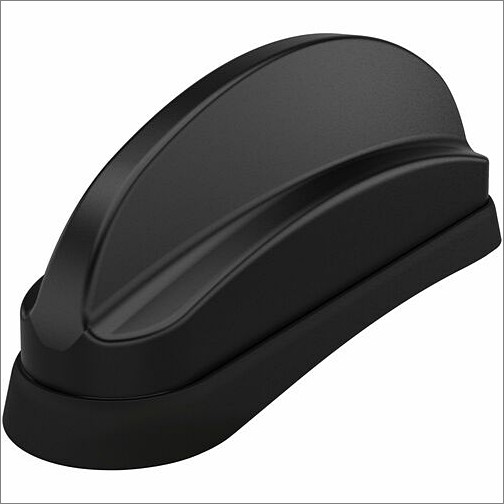

Panorama Antennas LGAM-6-60-D-1 Antennas Panorama Antennas Lp[g]am[f]-6-60 Antenna - 617mhz - 960mhz, 4900mhz - 7200mhz - 26 Db - 11 Dbi - Ki Lgam660d1

Part Number: LGAM-6-60-D-1
Condition: New
In Stock: Out of stock
Real time availability

Notify Me


Regular:$172.00
Save:$51.23 (30%)

Your Price:
$120.77

As low as $11/month
Buy Now, Pay Later



  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications



Panorama Antennas LP[G]AM[F]-6-60 Antenna - 617MHz - 960MHz, 4900MHz - 7200MHz - 26 dB - 11 dBi - Kiosk, Display Screen, Vending Machine, Cellular Network, GPS - Black - Mast/Panel/Wall - Omni-directional - SMA Connector LGAM-6-60-D-1

LO PRO IOT FIN 2X CELL 2X WIFI GPS/GNSS 1M CBL

Manufacturer Part Number: LGAM-6-60-D-1



CPN:LO PRO IOT FIN 2X CELL 2X WIFI GPS/GNSS 1M CBL
MANUFACTURER NAME: Panorama Antennas
MANUFACTURER PART NUMBER: LGAM-6-60-D-1
UPC EAN CODE:
LANGUAGE: EN
MARKET:US

General Information:

The LP[G]AM[F]-6-60 platform contains a 2×2 MiMo antenna function for 4G/5G (617-960/1427-6000MHz) and the option of 2×2, 3×3 or 4×4 MiMo dual-band WiFi, which supports WiFi 6E

An optional active antenna for GPS/GLONASS/Galileo/ BeiDou can be included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.

The LP[G]AM[F]-6-60 is designed for use on conductive metal panels but can be used on non-conductive panels with some detriment to performance in the 600MHz band.

This antenna is ideal for IoT applications including vending machines, kiosks, display screens and payment terminals where a cost-effective, efficient and robust antenna is essential. Supplied with integrated flexible FR RG174 cables and requiring only a single hole mounting, the LP[G]AM-6-60 range is a convenient and easy to install solution for a range of applications.

ManufacturerPanorama Antennas Ltd
Manufacturer Part NumberLGAM660D1
Manufacturer Website Addresshttp://www.panorama-antennas.com
Brand NamePanorama Antennas
Product SeriesLP[G]AM[F]-6-60
Product NameLP[G]AM[F]-6-60 Antenna
Product TypeAntenna
Technical Information:
DirectivityOmni-directional
Operating Frequency Range617MHz - 960MHz
4900MHz - 7200MHz
Antenna Gain26 dB
Antenna Gain (Isotropic)11 dBi
Voltage Standing Wave Ratio (VSWR)<2:1
Interfaces/Ports:
Connector TypeSMA
Physical Characteristics:
Product ColorBlack
Height3.54"
Width2.48"
Depth9.57"
Form FactorMast/Panel/Wall
Miscellaneous:
Application/UsageKiosk
Display Screen
Vending Machine
Cellular Network
GPS
What's in the box
  • LP[G]AM[F]-6-60 Antenna
  • FR RG174 Cables
