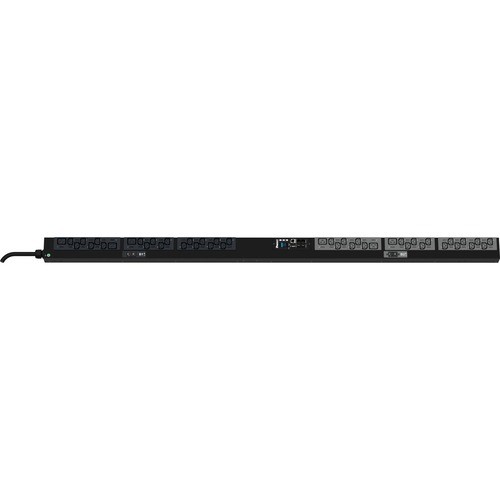

Panduit P48F04M Monitored Per Outlet PDU - Monitored - NEMA L22-30P - 48 x IEC 60320 C13 - 415 V AC - 0U - Vertical - Rack-mountable, Cabinet-mountable - Hot-swappable, Full
P48F04M | Panduit®
Part Number: P48F04M
Condition: New
In Stock:
Out of stock
Real time availability
Notify Me
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Panduit P48F04M Monitored Per Outlet PDU - Monitored - NEMA L22-30P - 48 x IEC 60320 C13 - 415 V AC - 0U - Vertical - Rack-mountable, Cabinet-mountable - Hot-swappable, Full
PDU415V 30 AMP48 C13 NEMA L22 3MBL MOQ80
Manufacturer Part Number: P48F04M
If Stock availability is NOT shown, this item will be custom built and shipped direct from Panduit. Please allow 14 – 21 business days for delivery.
MANUFACTURER NAME: Panduit
MANUFACTURER PART NUMBER: P48F04M
UPC EAN CODE:
LANGUAGE: EN
MARKET:US
| General Information: | |
The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money. | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P48F04M |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MPO |
| Product Name | P48F04M Monitored Per Outlet PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information: | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L22-30P |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 48 x IEC 60320 C13 |
| Protection Type | Circuit Protection
Overload Protection Overcurrent Protection |
| Locking Receptacles | Cable Retention Bracket |
| Power Description: | |
| Input Voltage | 415 V AC |
| Output Voltage | 240 V AC |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 30 A |
| Management: | |
| Management |
|
| Physical Characteristics: | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable
Cabinet-mountable |
| Form Factor | Hot-swappable
Full |
| Rack Height | 0U |
| Width | 3.3" |
| Depth | 2.1" |
| Length | 74" |
| Miscellaneous: | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty: | |
| Warranty | 3 Year |
Questions and Answers
Questions and Answers | Ask CompSource |
Shipping / Returns
Shipping
Ground =
FREE
(Delivery within 2-7 business days)
Two Day Air = $46.00
(Delivery within 2 business days)
Standard One Day = $90.00
(Delivery within next business day)
Priority = $129.00
(Delivery within next business morning)
U.S Mail Priority (AA,AE,AP only) = $58.33
FedEx International Economy (Canada only) = $106.00
Typically out of stock items are filled within 1 to 14 business days but can and may take longer.
Shipping dates are best estimates based on product location and may vary with holidays.
If product requires trucking, additional fees may apply.
* Some destinations are subject to Applicable State/Duty Taxes
Returns
CompSource realizes that every product may have different return guidelines. Please see the policy below regarding this item.
This Product Has Limited Exchange Privileges.
Limited returns within 30 days of purchase permitted on this product.
For support on this product, please contact Panduit. 800-777-3300 www.panduit.com/
Panduit Company's Information
Click Panduit for all products
Toll Free #: 800-777-3300
Site: www.panduit.com/
Accessories
Product Reviews
Overall Rating | Write a Review
|
|
Best Sellers
More Best Sellers
About Panduit
Panduit recognizes that physical, electrical, and network infrastructure is more important than ever for connecting the critical parts of the world we live in today – and in the future. Our vision is to leverage our full portfolio and capabilities and our partner ecosystem, to support our customers in the design, development, and deployment of infrastructure solutions that realize these critical connections for life.
Connections mean everything. People thrive on them. Industry is powered by them. Society grows from them. And, in today's hyper-connected economy, your connectivity can be the difference between driving competitive advantage and getting left behind. That's why the physical, electrical, and network infrastructure underpinning your organization grows more essential by the day.
For more than 60 years, we have invested our heart, soul, and engineering curiosity in the innovations that realize the critical connections for life. We work with leading organizations in markets as diverse as manufacturing, education, healthcare, transportation, energy, and telecommunications to create comprehensive, stable infrastructure solutions. These solutions instill agility, productivity, and advantage at every layer of their business.
Our customers look to Panduit as a trusted, strategic advisor who works with them to address their most critical business challenges within their data center, enterprise, and industrial environments, powering progress and the bottom line. Most importantly, these organizations and the markets they serve count on Panduit for the solutions that connect our world in the most meaningful ways.
Here are just a few popular Panuit categories CompSource carries;
CompSource has a great technical staff that can help with your Panduit solution for your exact needs.Chat with us or give our professionals a quick phone call (800)-413-7361.
Learn more about PDUs
What are Smart or Intelligent PDU's;
In the world of PDUS, there are essentially two types: Basic PDUS and Smart /Intelligent PDUS. The
The Smart/Intelligent label can sometimes generate confusion because it's not a term that corresponds to a singular qualifying product feature. There are a collection of advanced features that when available in a PDU model, make that model smart.
It's important to understand that it's not about having a smart PDU with all the advanced features currently available. It's about establishing what your power management needs are. And going from there. The industry has essentially scripted what are the most common power optimization scenarios, and thus have created a set of Smart PDU sub categories that each address an appropriate scenario.
Smart PDUS are broken down into 4 distinct sub categories:
- Metered Inlet PDUS
- Metered Outlet PDUS
- Switched PDUS
- Switched PDUS with Outlet Metering
