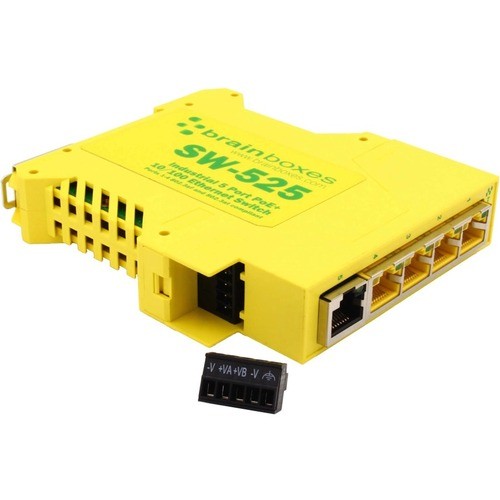

Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 4 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable, Compact - Lifetime Limite SW-525
SW-525 | Brainboxes®
Part Number: SW-525
Condition: New
In Stock: 2
Real time availability
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch - 5 Ports - Fast Ethernet - 10/100Base-T - TAA Compliant - 2 Layer Supported - 4 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable, Compact - Lifetime Limite SW-525
INDUSTRIAL 5 PORT POE 10/100 - FAST ETHERNET SWITCH -40F TO +158F
Manufacturer Part Number: SW-525
MANUFACTURER NAME: Brainboxes
MANUFACTURER PART NUMBER: SW-525
UPC EAN CODE: 837324004533
LANGUAGE: EN
MARKET:US
| General Information: | |
Industrial Compact 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more | |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-525 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Brand Name | Brainboxes |
| Product Model | SW-525 |
| Product Name | Industrial 5 Port PoE+ 10/100 Ethernet Switch |
| Product Type | Ethernet Switch |
| Product UPC | 837324004533 |
| Interfaces/Ports: | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x Fast Ethernet PoE+
1 x Fast Ethernet Network |
| Media & Performance: | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T |
| Network & Communication: | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3at
IEEE 802.3af |
| Management & Protocols: | |
| Manageable | No |
| Power Description: | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 90 W |
| Input Voltage | 44 V DC
57 V DC |
| Power Source | Power Supply
USB |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 4 W |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics: | |
| Form Factor | DIN Rail Mountable
Compact |
| Height | 4.7" |
| Width | 3.9" |
| Depth | 0.4" |
| Weight (Approximate) | 4.37 oz |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Great Britain |
| TAA Compliant | Yes |
| Warranty: | |
| Warranty | Lifetime |
