Trendnet TI-UF11SFP Transceivers/Media Converters Trendnet Hardened Industrial Sfp To Gigabit Upoe Media Converter, Ip30 Rated Housing, Includes Din-r Tiuf11sfp 800100317684

Part Number: TI-UF11SFP
Condition: New
In Stock: Out of stock
Real time availability

Notify Me


Regular:$184.99
Save:$36.79 (20%)

Your Price:
$148.20

As low as $14/month
Buy Now, Pay Later




Square Trade
  • Shipping Insurance
  • Price Match Guarantee
  • Terms of Service Guarantee
  • Identity Theft Protection
FREE with your purchase
Expert Name, Expert Title
Let our Specialist make your purchase easier

Product Specifications

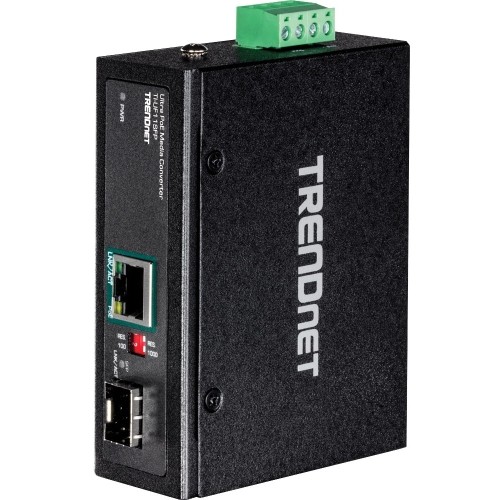

TRENDnet Hardened Industrial SFP to Gigabit UPoE Media Converter, IP30 Rated Housing, Includes DIN-Rail & Wall Mounts, Operating Temp. -40 to 75 °C (-40 to 167 °F), TI-UF11SFP, Black - TRENDnet Industrial SFP to Gigabit UPoE Media Converter

HARDENED INDUSTRIAL SFP TO GIGABIT UPOE MEDIA CONVERTER

Manufacturer Part Number: TI-UF11SFP

TRENDnet's Industrial SFP to Gigabit UPoE Media Converter, model TI-UF11SFP, converts fiber to copper while providing power to PoE, PoE+ and UPoE compliant devices such as IP cameras, VoIP phones and wireless access points



CPN:HARDENED INDUSTRIAL SFP TO GIGABIT UPOE MEDIA CONVERTER
MANUFACTURER NAME: Trendnet
MANUFACTURER PART NUMBER: TI-UF11SFP
UPC EAN CODE: 800100317684
LANGUAGE: EN
MARKET:US

General Information:

TRENDnet's Industrial SFP to Gigabit UPoE Media Converter, model TI-UF11SFP, converts fiber to copper while providing power to PoE, PoE+, and UPoE compliant devices, such as IP cameras, VoIP phones, and wireless access points. With an operating temperature range of -40°- 75 °C (-40° - 167 °F), the hardened IP30 rated housing is suitable for industrial environments. Dual power inputs (power supply sold separately: TI-S12048) with overload current protection minimizes downtime.

  • NETWORK PORTS: 1 x Gigabit PoE+ Ethernet port and 1 x SFP slot
  • NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Media Converter, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
  • MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-UF11SFP, Industrial SFP to Gigabit UPoE Media Converter is backed and supported with 3 years of TRENDnet Manufacturer Protection.
  • Powers supply sold separately (model TI-S12048); Up to 40 km fiber networking distances with the TI-MGBS40 SFP module
  • EXTREME ENVIRONMENTS: Hardened IP30 converter for extreme networking environments, with a -40 to 75 °C (-40 to 167 °F) operating temperature range
  • DIN-RAIL/WALL MOUNTS: IP30 rated metal enclosure with included DIN-rail and wall mount hardware
  • SHOCK AND VIBRATION RESISTANT: Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
  • ELECTROMAGNETIC COMPLIANCE: Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
  • CERTIFICATIONS: Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)


    More from the Manufacturer

    ManufacturerTRENDnet
    Manufacturer Part NumberTI-UF11SFP
    Manufacturer Website Addresshttp://www.trendnet.com
    Brand NameTRENDnet
    Product ModelTI-UF11SFP
    Product NameHardened Industrial SFP to Gigabit UPoE Media Converter
    Product ConditionNew
    Product TypeTransceiver/Media Converter
      Product UPC800100317684
    Interfaces/Ports:
    Total Number of Ports1
    Network (RJ-45)Yes
    Number of Network (RJ-45) Ports1
    Media & Performance:
    Media Type SupportedTwisted Pair
    Optical Fiber
    Fiber Mode SupportedSingle-mode
    Multi-mode
    Maximum Distance Supported40 km
    I/O Expansions:
    Total Number of Expansion Slots1
    Expansion Slot TypeSFP
    Number of SFP Slots1
    Network & Communication:
    Ethernet TechnologyGigabit Ethernet
    Network Technology1000Base-T
    1000Base-X
    Power Description:
    Power SourcePower Supply
    Physical Characteristics:
    Form FactorRail-mountable
    Wall Mountable
    Height2"
    Width4"
    Depth6"
    Weight (Approximate)5.40 oz
    Miscellaneous:
    Country of OriginTaiwan
    TAA CompliantYes
    Warranty:
    Warranty3 Year

    Date Inserted: Tuesday February 7, 2023

    This product was last updated on Sunday December 22, 2024

    All products are brand new and factory sealed unless otherwise stated.
     *** Disclaimer- Information is supplied by the Manufacturer. The image, including color, may differ from actual product appearance. CompSource, Inc. is not responsible for data. ***
