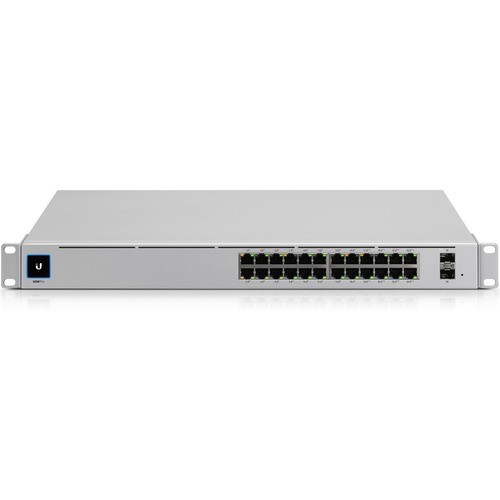

Ubiquiti USW-Pro-24-POE Layer 3 Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - 1 Year Limited Warranty
USW-PRO-24-POE | Ubiquiti®
Part Number: USW-PRO-24-POE
Condition: New
Stock: 546
Real time availability
- Shipping Insurance
- Price Match Guarantee
- Terms of Service Guarantee
- Identity Theft Protection
Product Specifications
Ubiquiti USW-Pro-24-POE Layer 3 Switch - 24 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - 1U High - Rack-mountable - 1 Year Limited Warranty
UniFi 24 Port Gigabit PoE Swit
Manufacturer Part Number: USW-PRO-24-POE
The USW-PRO-24-POE is a configurable Gigabit Layer2 and Layer3* switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen PoE+ and eight PoE++ RJ45 Ethernet ports have total 400W PoE budget, and two SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.
MANUFACTURER NAME: Ubiquiti
MANUFACTURER PART NUMBER: USW-PRO-24-POE
UPC EAN CODE: 817882027649
LANGUAGE: EN
MARKET:US
| General Information: | |
Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality. Near-Silent Cooling The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience. Fiber Connectivity SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch. 802.3bt PoE++ PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE. Redundant Power Option The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails. | |
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-PRO-24-POE |
| Manufacturer Website Address | http://www.ui.com |
| Brand Name | Ubiquiti |
| Product Model | USW-Pro-24-POE |
| Product Name | USW-Pro-24-POE Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Product UPC | 817882027649 |
| Interfaces/Ports: | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+
8 x Gigabit Ethernet PoE++ 2 x 10 Gigabit Ethernet Uplink |
| Media & Performance: | |
| Media Type Supported | Optical Fiber
Twisted Pair |
| Ethernet Technology | Gigabit Ethernet
10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T
10GBase-X |
| I/O Expansions: | |
| Number of Total Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication: | |
| Layer Supported | 3 |
| Management & Protocols: | |
| Manageable | Yes |
| Power Description: | |
| PoE Budget | 400 W |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 50 W |
| Physical Characteristics: | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 11.2" |
| Weight (Approximate) | 9.48 lb |
| Miscellaneous: | |
| What's in the box |
|
| Environmentally Friendly | Yes |
| Warranty: | |
| Warranty | 1 Year |
